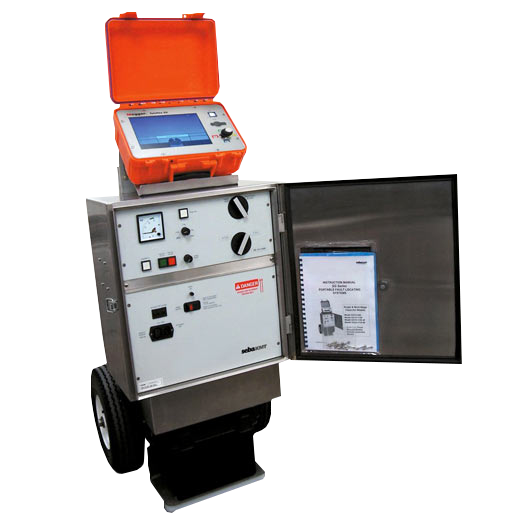

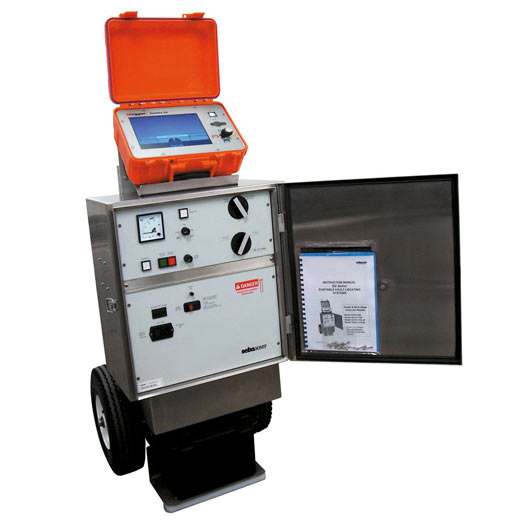

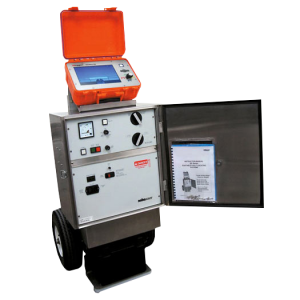

SFX 15 & 25 Mobile, Battery Operated Cable Fault Locating System

The Surgeflex 15 and 25 cable fault location systems with their 1150 J surge energy provide a standard solution for portable systems.

The basic system comes already fully equipped with integrated battery, inverter/charger and is mounted on an easy to move trolley. For a fixed vehicle mounting, the systems are also available without trolley and internal battery system.

For high flexibility, the systems are equipped with a separately mounted reflectometer cum controller. With the ARM Arc Reflection Method, a powerful tool for the fault location, especially for highly resistive faults is available.

Key benefits:

  • Easiest operation
  • ARM and ICE integrated
  • Very compact and rugged design
  • Battery operation up to 4 hours
  • Weather proof stainless steel housing

Complete fault locating system with:

  • DC-Testing up to 15 kV / 25 kV (depending on model)
  • Prelocating
  • Reflection measurement
  • ARM-Measurement (Arc reflection method)
  • ICE Impulse current method
  • Cable tracing (optional)
  • Pin-pointing
  • Distance and acoustic measurement
  • Audio frequency methods (optional)
  • Battery and mains operation

Specifications
Product Specification



TDR
Transienten 20 m…160 km
Pulse width 20 ns…5 µs
Sampling rate up to 400 MHz
Display Touchscreen
V/2 10… 149.9 m/µs
Modes Symmetricalunsymmetricalreflection measurement
Difference measurement/comparision
All ARM arc Reflection Methods, ARM Slide, Pro Range,
All ICE impulse current decoupling methods
DECAY Travelling wave method
IFL intermittent Fault Location
Arc reflection burning.
Memory 4 GB
interface Ethernet, USB, BNC, CAN (LON optional)
Impedance matching 8 Ω… 500Ω, adjustable
Operating temperature -10ËšC…+ 50ËšC'
Supply NiMh-BATTERY, 110-230
 v; 50/60 Hz, 12 V DC
Dimensions (W x H x D) 362 x 195 x 306 mm
Weight 6 kg
Weight approx. 110 kg
SFX 5-1150
Test and surge voltage 0…15 kV; 1150 J
Weight approx. 110 kg
SFX 25-1150
Test and surge voltage 0…25 kV; 1150 J
Weight approx. 110 kg
Technical data of system
Sureg Rate 3…9 s
Battery operation approx. 1.5 h (1150 J)
Mains supply 230 V; 50/60 Hz,(110 V optional)
Dimensions (W x H x D) 600 x 1250 x 600 mm
Connecting cable 6 m (Standard)
Features
Features

  • Testing in low and medium voltage networks.
  • Extremely regged design.
  • Stand slone operating.
  • Easy to use.


FAQ
FAQ


Product Info Downloads
Product Info Downloads
