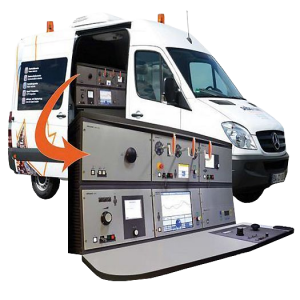

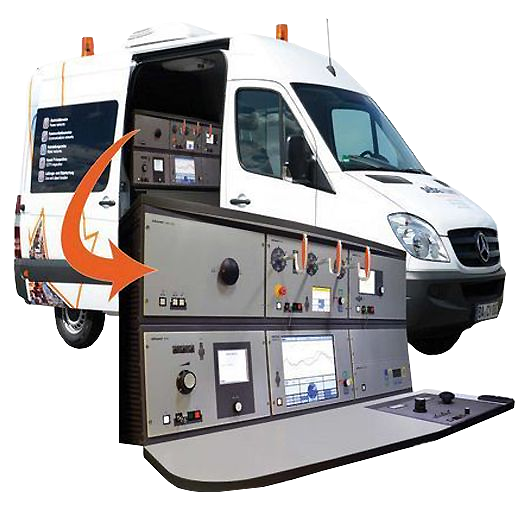

Megger Variant Cable Test Van

  • Product Description
  • Specifications
  • Features

The Variant is a modular three or single phased system for testing and fault location on power cables in low and medium voltage networks.

The variant offers a maximum variability in the equipment options and features of a cable test and fault location system.

The flexibility of the variant permits a very specific customer suited adaptation of the systemfor cable testing, surge energy for the pinpointing, burning and sheath fault location.

The variant features flexibility to individuals adapted key parameters for cable testing, surge energy for fault pinpointing, burning and sheath fault location to the operators needs.

Standard featres of the classic system are 80 kV DC test voltage, ARM cable fault prelocating methods up to 32 kV



Method Base Module Options
Operation
  Single phased, manual switching system NSF 8 , air insulated HV switch with intergrated FU/ EP safety system , 5.7" color TFT, connectors for external insulation tester (1000 V max.)
Insultation testing
500 and 1000 V   Intergrated automatic or manual insulation, resistance and capacitance measurement, trend measurement (DAR and PI) of resistance up to 10 min, automatic memory , comparison of measurements ph-ph and ph-N, 6 measurement for resistance ph-ph, 3 measurements for cablecapacitance Riso: 1 Ω ... 2 G Ω Riso: 1 G Ω ... 2 GΩ
Capacity   C: 0,0 µF
< 24 V   R: 0,1 Ω … 1 KΩ
HV Testing
DC 0… 80 kV, IN 14 mA, Imax 50 mA 0 … 50 kV, IN 14 mA, Imax 50 mA
0 … 100 kV, IN 15 mA, Imax 50 mA
AC   0 … 58 kV AC , IN 14 mA, Imax 50 mA Not possible via the HV cable drum !
VLF Testing   VL 54 kVrms 0,1 Hz Cosine Rectangular Voltage, max. cable capacity 5 µF@54 kV, 8 µF@36 kV 21 µF@18 kV
VLF sin 54 kV, max. cable capacity 5 µF@38 kV rms / 0,01 hz; 1 µF@38 kVrms / 0, 1 Hz
Diagnosis   OWTS Partial discharge measuring system with oscillating voltage close to power frequency
Tan δ Measurement in connection with VLF sin
Sheath testing 0 … 5, 10 kV, 800 mA, (with BPS 5000) 0 … 10 kV, 750 Ma (option MFM 10)
Prelocation
Impulse Reflection Measurement modes Direct, Diffrence, Comparison , Average, Intermittent Fault location IFL, simulataneous display of six phases or memory contents in selectable colours. Automatic adjustement of gain, range and pluse dt. ARMslide technology with 15 Measurement in one ARM surge,Pro Range function with distance depending attenuation correction
Sample Rate max. 400 MHz
Pluse dt 20 ns … 10 µs
Range 20 m … 1280 km bei v/2 = 80m/ µs
Pluse amplitude 30 … 160 V
Propagation Velocity V/2: 10 … 149,9 m/ µs, ft/µs or NVP
Dynamic range > 80 dB
Output impedance 50 Ω
Accuracy Better than 0.1 % of range
Resolution 0,1 m @ 80m/µs, 1,0 cm @ V/2 < 40 m/µs
Interface LAN,USB , DVI, LON , CAN
Display 15" Colour SXGA, CCFL- Backlight,300 cd/m²
Data Storage 2 GB each for Program, Data and recovery
Gain -37 … +37 db + 0 … 22 dB for ProRange
Data and reporting Automatic storage of all measurement, report printing , also as PDF export or to Winkis software
HV prelocation
ARM   0 … 8/16/32 kV active with LSG 3-E, 2 kV, 640 J
0 … 2/ 4 kV additional surge stages
Decay 0 …Umax (max. DC test voltage)
Current decoupling 0 … 8/ 16 / 32 kV, 1-phased 0 … 8/ 16/ 32 kV, 3-phased
ARM burning   0 … 15 kV, 20/25 and M 212 ETF
Sheath fault loation   0 … ± 10 kV, max. 750mA (see MFM 10)
Burning
DC   0 … 1,2 kV 6 A; 4 kV, 1,5 A; 8kV , 0,8 A; 15 kV, 0,5 A
AC   0 … 60 V, 110 A; 0 …220 v, 30 A
Resonance burning   0 … 15 kV , 20 A with T 22/13
Pinpointing
Acoustically by surge module 0 … 8/ 16 kV /32 kV, 1750 J 2,5 … 10 s 0 …2 /4 kV, 1150 J
Surge rate 0 … 8 /16/ 32 kV,3500 J
Surge wave receiver   digiPHONE+
Sheath faults with DC Step voltage   0 … 10kV, max. 750 mA (MFM 10)
0 … 5 kV , 0, 8 A 0 … 10 kV, 0,5 A (with BPS HV)
Step voltage receiver   ESG NT
Audio Frequency
Output power   200 W
Frequencies   491 Hz, 982 Hz, 8.44 kHz also with SignalSelect, Supermaximum
Impedance   0,5 Ω… 1 kΩ automatic impedance matching
Sheath faulting pinointing with AC audio frequency   Step voltage probe, direct or capacitive
HV connections
1-phased ECONOMY : 50 m (manual cable drum) COMFORT : 50 m (motorised slip- ring cable drum)
PRO: 50 m (motorised slip-ring cable drum)
LV connections power supply
  Earth potential monitoring , 10 m (manual cable drum)

Intergrated safety system with FU/EP.

Separation transformer

Monitoring of: Voltage difference to protective earth Rise time of protential to protective earth to aux. earth Loop of protective earth to aux. earth Loop of cable shield to aux. earth
ECONOMY: Mains cable 50 m (manual slip-ring cable drum), protective earth cable 50 m (manual cable drum)
COMFORT: Mains cable 50 m (recoiling belt slip-ring cable drum), protective earth 50 m (motorised cable drum)
PRO: Mains cable drum 50 m (manual ,recoiling band or motorised cable drum)
Teleflex connection   3-phase coax cable, 50 m (manual , recoiling band or motorised drum)
Safety cable drum   Safety cable drum 50 m (manual , recoiling band or motorised) with emergency- OFF , key interlock and status indicating lights
Operating conditions
Operating temperature -20 ËšC … + 55 ËšC
Storage temperature -25 ËšC … +60 ËšC
Weight
  Depending on options 700 …1200 kg
Mains supply
Mains voltage 230 V, 50 Hz (16 A connection) 120 V, 60 Hz
Generator operation from vehicle engine
Battery operation up to 4 hours
Power consumption Separation transformer max. 2 kVA Separations transformer 5 kVA with CEE- connector for extended requirement such as ARM Burning , air condition etc.
  • Modular and redundant setup
  • Integrated user guidance
  • Flexible adaptation to the customer requirements
  • High surge energy of 1750 or 3500 joules
  • Highest safety standard
  • High redundancy due to integrated but separate components.
  • Fast and precise location of cable faults
