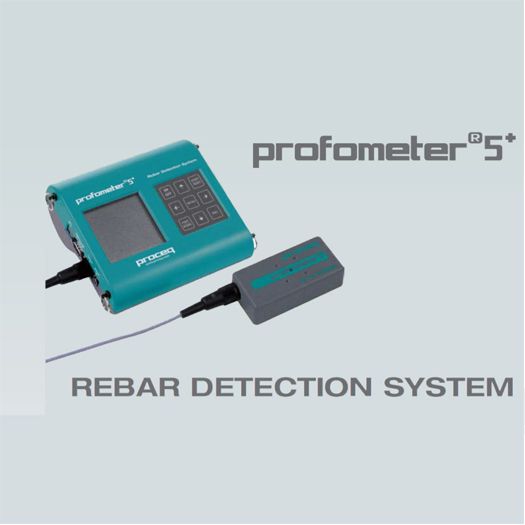

Proceq Profometer 5+ Rebar Detector

The Profometer 5+ cover meter is a sophisticated device for the non destructive location of rebars and for the measurement of concrete cover and bar diameters, using the eddy current principle with pulse induction as the measuring method, as well as detecting the rebar diameter accurately to the millimeter by only one measuring procedure.

The cover meter Profometer 5+ offers the transmission of the measured data to a PC. This supersedes the time consuming business of note taking, allowing the user to focus on the essential. Proceq offers two different models of the Profometer 5+ cover meter, each designed to meet the individual needs of the customer:

Profometer 5+ cover meter Model S (Basic Unit) performs the following functions:

  • Locating rebar
  • Concrete cover meter
  • Storing individual cover values and statistical evaluation
  • Determining the bar diameters

The Profometer 5+ cover meter Model Scanlog has all the function of the model S but offers additionally the following features:

  • 2-dimensional display of rebar layout
  • 2-dimensional display and mapping of concrete cover values
  • The cover meter meets the customers' needs for digital rebar location.

Product Specification
Cover Measuring Range Up to 185 mm (7.3“)
Cover Measuring Accuracy ± 1 mm to ± 4 mm (0.04” to 0.16”)
Measuring Resolution Depending on diameter and cover
Path Measuring accuracy on smooth surface ± 3 mm (0.12”) + 0.5% to 1.0% of measured length
Display 7” colour display 800x480 pixels
Diameter Measuring Range Up to 63 mm (2.5“)
Diameter Measuring Accuracy ± 1 bar size
Memory Internal 8 GB Flash memory
Regional Settings Metric and imperial units and multi-language supported
Battery Lithium Polymer, 3.6 V, 14.0 Ah
Battery Lifetime > 8h (in standard operating mode)
Mains 9 V – 15 V / 2.0 A
Weight (of display device) About 1'525 g (incl. Battery)
Operating temperature 0°C – 30°C (Charging*, running instrument)
0°C – 40°C (Charging, instrument is off)
-10°C – 50°C (Non-charging)
Humidity < 95 % RH, non condensing
IP Classification IP54
Standards and Directives CE certification

*charging equipment is for indoor use only (no IP classification)

  • Visual assistance for scanning speed and signal strength control
  • Settings directly accessible on the measurement screen
  • Graphical display of measured values and minimum cover set
  • Change settings before and after storage
  • PM-Link software for downloading saved data to a PC for analysis and export to third party applications

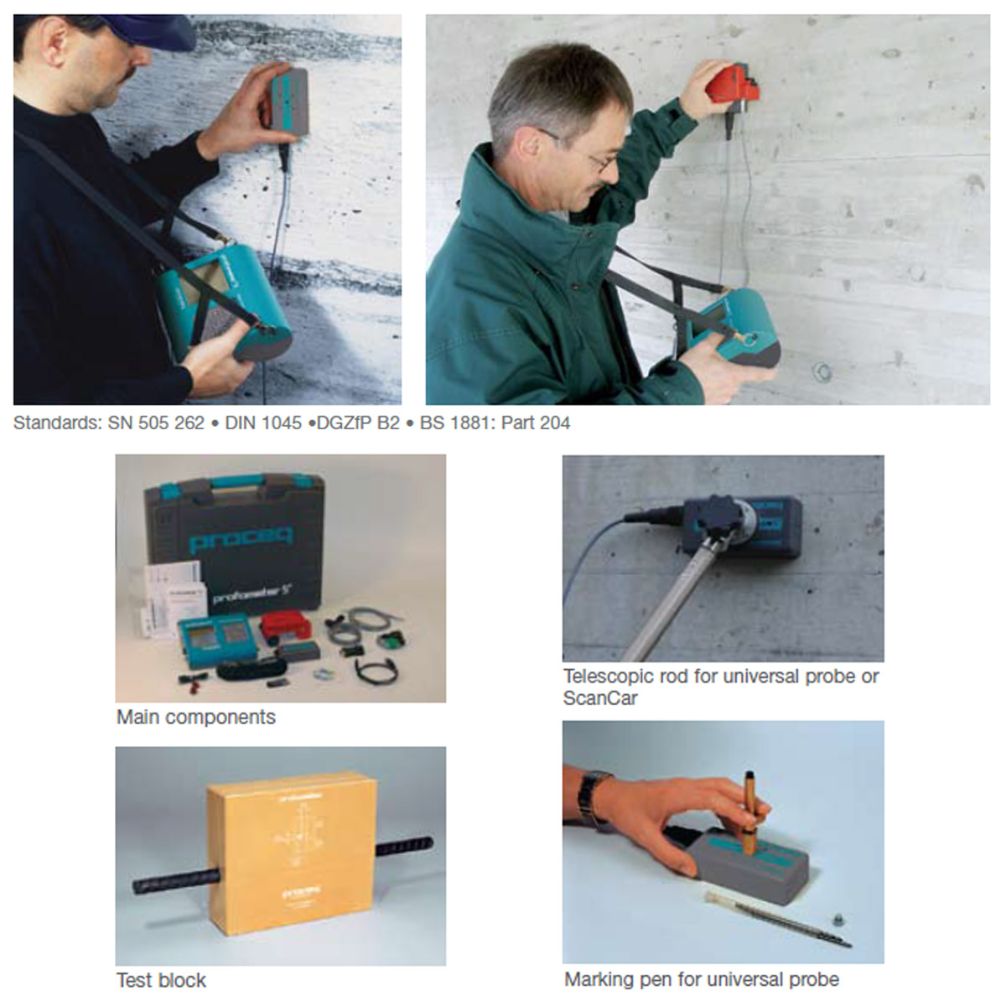

  • All-in-one Universal Probe including standard, long range and spot probe
  • Spot probe specially for areas with congested rebar arrangements
  • Housing specially designed to be used on-site in harsh environments, including carrying strap, integrated stand and sunshield cover
  • High resolution color display
  • Battery lifetime of > 8h
  • 8 GB Flash memory
  • Dual core processor supporting diverse communication and peripheral interfaces
  • Future proof investment through direct upgrade possibilities to upcoming Profometer products
