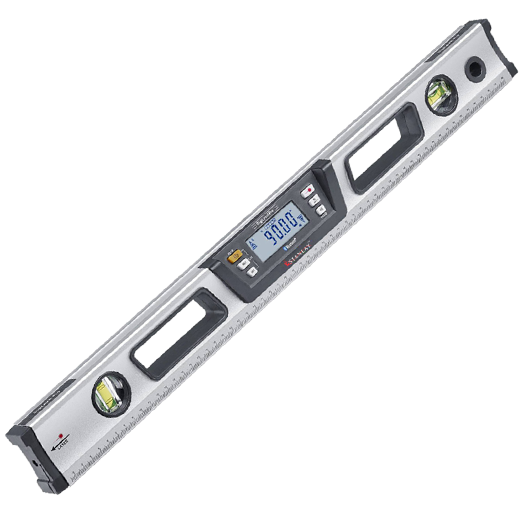

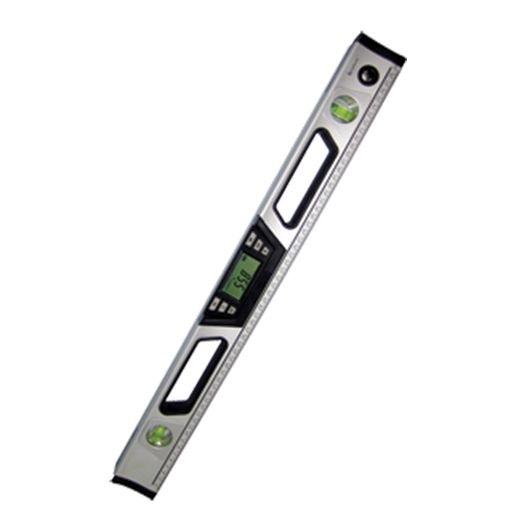

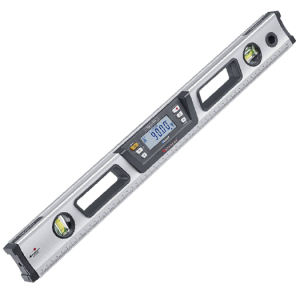

Digilevel 120 Pro Inclinometer

Digilevel 120 PRO is 120cms long electronic level for inspection and implementation of level, plumb, slopes and angles in Road construction, Railway Construction and Building Construction.

  • In engineering - metal fabrication & substructures;
  • In Road Construction use on hot asphalt for sample slope check readings and functioned fine;
  • In railway construction check sleeper levels;
  • In buildings, use the electronic level for floors, roofing, and staircase;
  • In industrial use for applications such as angle and slope measurement on conveyer belts.

The Digi level is a professional digital electronic spirit level (inclinometer) that enables the user to find & check level, plumb & angles in two ways: For quick reference use the sensitive horizontal & vertical bubble vials. For highly precise and easy work the unit features digital electronic display that provides vertical or horizontal angles. Accurate slope readings when required.

The PRO version also contains built in laser pointer for transferring levels.  Built in magnets allow the instrument to be attached to a ferrous base for easy use. In addition, the metallic base allows the instrument to be used on any rough surface. The Diglevel PRO versions also contain a Calibrate on Site function ensuring that your measurements are always accurate - Astoundingly accurate.

Specifications

Product Specification

Distance Measurement  upto 9999.99 meters
Stored in memory:  M-cm, FEET, Feet-inch
Stores  upto 8 measurements in memory
Batteries 3 x 1.5V "AA"
Item Code  ST- DMW30
Length  120cm
Measurement Range  4x90 Degrees
Measurement Electronic Accuracy  ± 0.05° (At 0°and 1°) ± 0.1° at 90°
Measurement Electronic Accuracy  +/- 0.2 ° (At 1° to 89 °)
Measurement Accuracy for vials  ± 0,5 mm/m
Memory  9 Results Stored
Environmental  Splash & water resistant
Power Supply  2X1.5V AAA Batteries
Size ( in mm ) 1220 x 60 x 33
Weight (in g ) 1400
Flip Display  Yes
Calibration Yes
Integrated Laser Dot  For Height Angle Transfer Yes
Milled Base With Scale Yes
Product Supply Includes  Digi level Unit Per Item Code Selected, Carry Bag & 2x1.5V AAA Batteries

Features

Features

  • Measurement Range : 4 x 90 Degrees.
  • Measurement Options : Degree(°), Percentage (%), pitch ( inches / feet ).
  • Unit contains two bubble vials, rugged & bilt to last .
  • The Sensor is encased in a high impact ABS polymer case. It's sealed against dirt and water & penetration.
  • Acoustic signal at horizontal & vertical.
  • Embedded magnets for fixing to magnetic responsive surface.
  • Reference function allows transfer of readings with respect to any surface or surface angle other than level.
  • Displays current operating temperature in °C when unit is switched on.
  • Auto shut off after 15 minutes.
  • Backlit Digital LCD Display.
  • Versatile Display : In case the unit is used in inverted position, the display inverts its readings as well to allow readability.
