Proceq GPR Live – The Most Innovative Ultra Wideband Portable GPR for Concrete Scanning

Proceq GPR Live is the latest offering from Proceq Switzerland, world leader in NDT & marks the beginning of a new era in NDT test instruments for concrete.

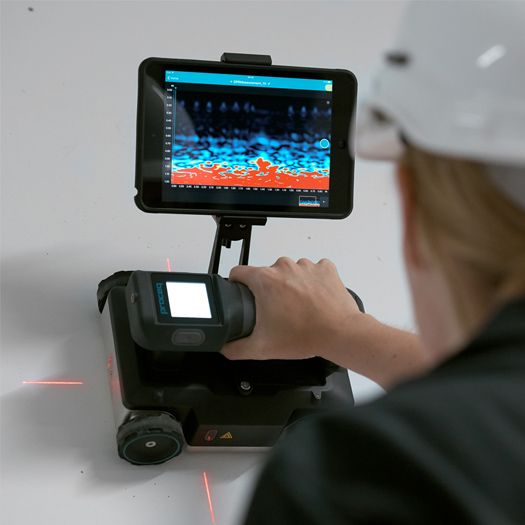

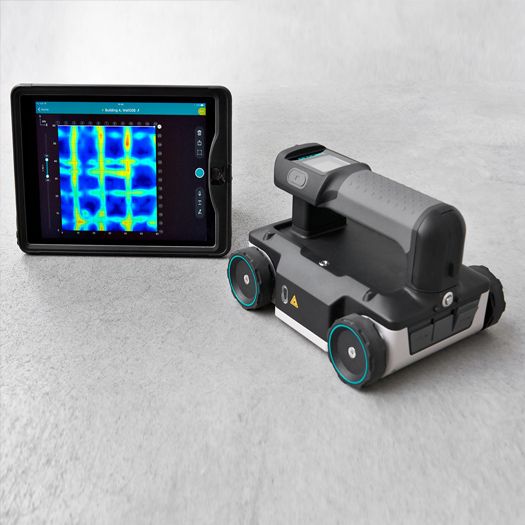

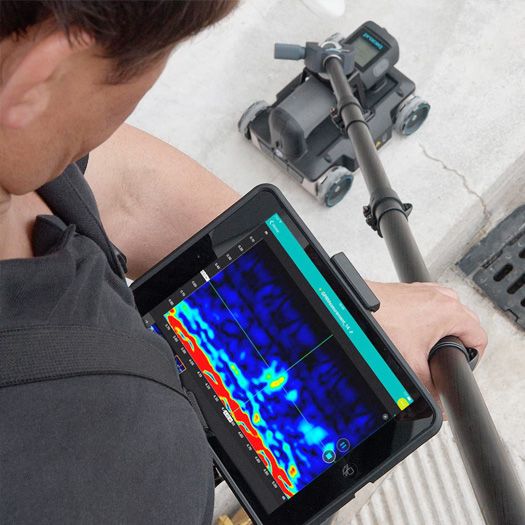

Proceq GPR Live is designed to provide outstanding structural building assessment based on a compact wireless 4 wheel car to perform structural imaging of rebar.

The New Proceq GPR live comes with the unique stepped frequency continuous-wave(SFCW) technology delivering the widest frequency spectrum covering all application typically addressed otherwise with multiple separate antennas in the range of 0.9 to 3.5 GHz which is now be covered with  a single antenna.
Proceq GPR live provide superior measuring modes such as line scan & area scan to conduct rebar detection or establish rebar grids in concrete to provide highly accurate & reliable data.

Proceq GPR Live is available in two Product Options:

1.     1. Proceq GPR Live Basic : Enables contractors to reliably avoid hit damage when drilling, cutting and sawing by providing superior measuring rebar detection performance with its ultra-wideband antenna


2. Proceq GPR Live Pro : For engineering consultants and structural inspectors to tackle all concrete imaging jobs of rebar in structures where more on site analysis & intuitive reporting is desired with sophisticated 3D time slice control for object & positioning data visualization features.



Product Models
Basic
Pro
Ultra-Wideband GPR


Basic time-slice view


Pro time-slice view


3D View


Data sharing and reporting


Secure cloud Features





Measuring principle
Stepped-frequency continuous-wave GPR
Frequency range
0.2 to 4.0 GHz
Central frequency
2.4 GHz
Bandwidth
2.85 GHz
Maximum peak power
-7 dB EIRP
Max. depth range
70 cm / 28 inches on dry concrete
Dimensions
220 x 180 x 143 mm / 8.7 x 7.1 x 5.6 in
Weight
2 kg / 4.4 lb
Battery
8 x AA (alkaline or rechargeable)
Battery lifetime
3.5 hours of continuous use
Display
Any Apple iPad
Operating  temperature
-10 to 50 °C / 14 to 122 °F
Humidity
<95% RH, non-condensing
IP classification
IP54
Export (only Basic & Pro version)
Measurement (Proceq GPR Live app file), snapshot (JPG), chart (CSV)
Languages
English, German, Spanish, Chinese, Japanese
Regional settings
Metric and Imperial units
Applied norms  and standards
AASHTO R 37-04, ACI 228.2R.98, ASTM D4748−10, ASTM D6087−08, ASTM D6432−11, EN 302066 - ETSI.

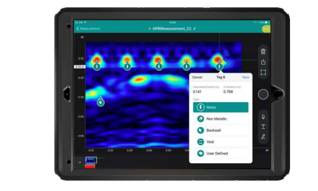

Object positioning Tag objects and calibrate the dielectric constant


  • User can choose from a library of predefined and user-defined objects


  • User can calibrate the dielectric constant by referring to known depth of detected objects

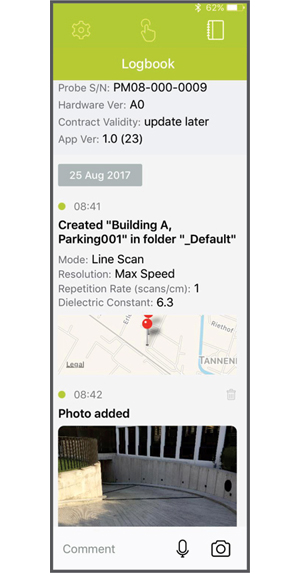

 Logbook


  • Enables users and supervisors to ensure the quality of the inspection procedure


  • Accelerates on-site note-taking

  • Reduces effort for reporting

  • Helps to identify sources of error


  • Enables geolocation of inspection through mobile GPS signatures



Non-migrated Line Scan


Unprocessed radar data (also known as “B-scan”, “radargram”)

Standard view with the highest signal-to-noise ratio compared to all competing devices


Preferred by experienced users

Optimal for determining the exact position of objects within concrete

Feature is available in Basic and Pro Version Device







Migrated Line Scan

Intelligently post-processed radar data (also known as “B-scan”, “radargram”)


Enables users to infer the location and shape of objects detected within concrete

Easier to intuitively interpret GPR data, even for inexperienced users

Feature is available in Basic and Pro Version Device

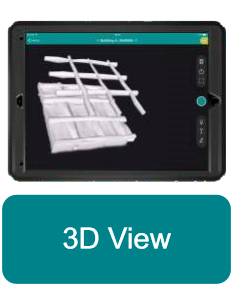

3D View

3D visualization of a Timeslice View Pro

Enables users to enjoy the most realistic view of detected objects

Spectacular reporting for the most demanding end-customers

Among all GPR devices, only Proceq GPR Live offers on-site3D View

Feature is available only in Pro Version Device

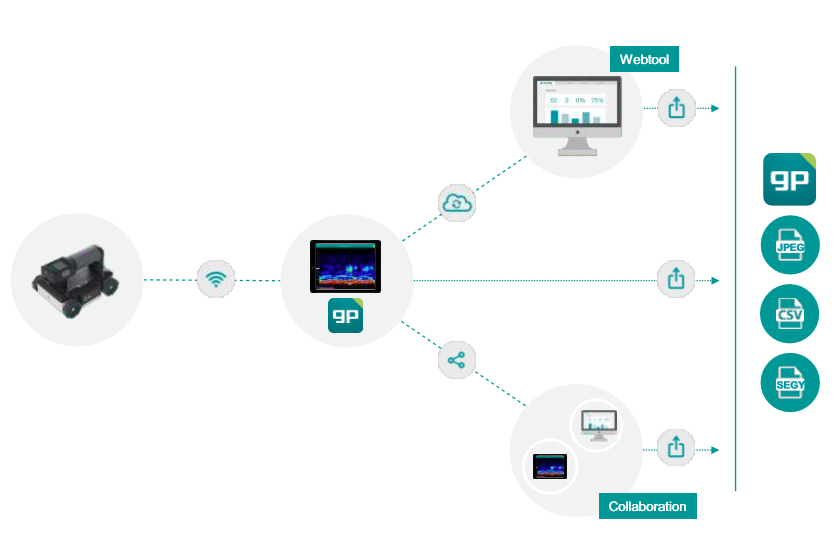

Data Export / Sharing / Reporting / Cloud
User-friendly cloud functionality enables collaboration and reporting


Only available on Pro Version Device

Note: data collected with Basic cannot be shared / exported through the Live cloud, even after upgrading to Pro version  device













 Product Info Downloads
 Related Article
When is a ground penetrating radar beneficial in locating of underground pipes & cable utilities ?
Pipe & Cable LocatorsThe task of Locating underground utilities can be bifurcated into two deliverable: 1.Detection of underground utilities 2.Mapping of underground utilities If we takeathis can be ...
