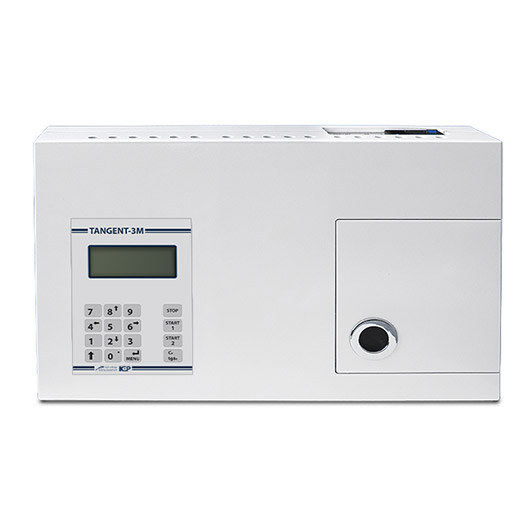

Tangent-3M Tan Delta Tester

Tan Delta Tester

TANGENT-3M is designed for measuring the dielectric dissipation factor (tan δ / tangent delta) of insulating oils at industrial frequency (f = 50 Hz) according to IEC 60247:2004.

In addition to the dielectric dissipation factor, TANGENT-3M determines the temperature, absolute permittivity, and electrical capacitance of the oil sample.

Tangent-3M tan delta tester offers fully automated measurement for dielectric dissipation factor including empty cell calibration & oil sample heating, carried out according to IEC 60247 specifications.

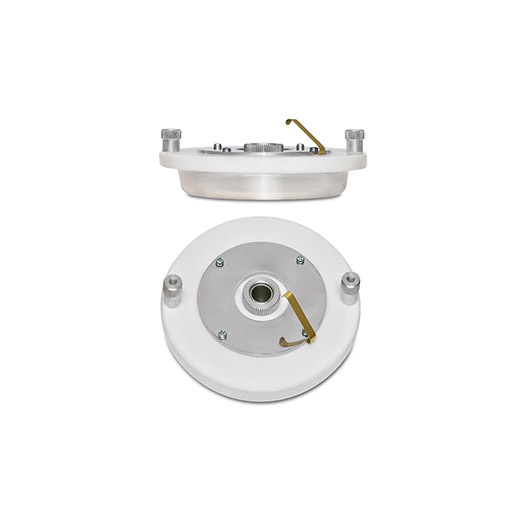

TANGENT-3M comes with three test cells as standard, however its non-volatile memory is capable of storing parameters for up to six different cells.The Tangent Delta tester has data storage facility & can store upto 2000 test results which can be further exported into MS Word or Excel formats.

In addition to the dielectric dissipation factor measurement/ Tan Delta Testing, TANGENT-3M Tan delta tester measures the temperature, dielectric constant and electrical capacitance of an oil sample.

High accuracy & rate of measurement:

The Tan Delta Tester provides highly  accurate measurements with accuracy ± (0.01*tan δ + 0.0002) for dielectric dissipation measurement, ± (tan δ + 0.5) % for determining electrical capacitance & ± 1 °С for measuring temperature.

Under program "START 1", Measurement duration including test cell calibration and oil sample heating to 90 °С (with taking measurements at 70 and 90 °С), does not exceed 35 minutes.

According to "START 2" program which in addition to test cell calibration and oil sample heating to 95 °С (with taking measurements at 70/80/90 °С) also includes the sample cooling (with taking measurements at 90/80/70 °С), does not exceed 85 minutes.

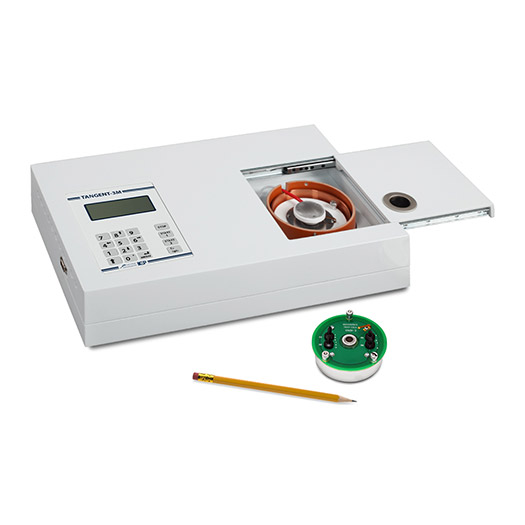

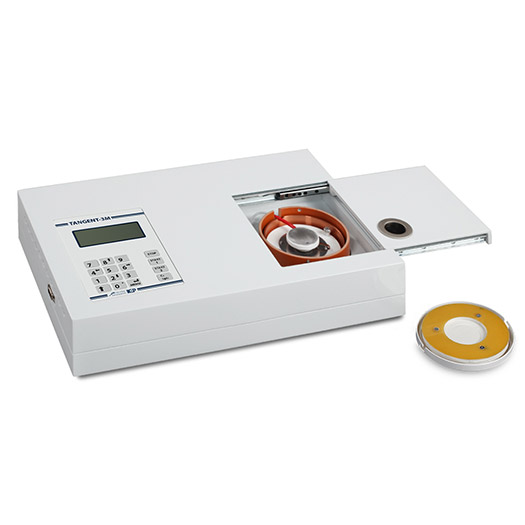

Durable Design : The Lightweight Tan Delta Tester is made in the form of a single compact unit enclosed in a heat-resistant plastic casing.

Safety: High-voltage circuit of TANGENT-3 is protected against breakdowns, while the high voltage supply is immediately cut off whenever the test chamber lid gets opened.

Specifications
Product Specification

Dissipation factor (tangent delta) measurement parameters

Measurement range

0.0001 … 1.0

Absolute measurement error

± (0.01*tan δ + 0.0002), where tan δ – measured value of the dissipation factor

Measurement resolution

0.00001

Measurement time, including cell calibration and oil sample heating to 90 °C (with measurement at 70 / 80 / 90 °C)

up to 35 min

Measurement time, including cell calibration and oil sample heating to 90 °C (with measurement at 70 / 80 / 90 °C) and cooling (with measurement at 90 / 80 / 70 °C)

up to 85 min

Electrical сapacitance determining parameters

Determining range

5 … 50 pF

Determining error

± (tan δ + 0.5) %

System parameters

AC voltage applied to the test cell

2000 VRMS

Relative voltage measurement error

± 2.5 %

Heating temperature of the oil sample in the cell

up to 90 °С

Absolute temperature determining error

± 1 °С

Test cell volume

12 cm3 ± 1 cm3

Power supply and consumption

Mains supply voltage

230 VAC, ± 10 %

Mains supply frequency

50 / 60 Hz

Power consumption

up to 0.3 kV•А

Physical

Dimensions, H × W × D

90 × 405 × 260 mm

Weight

5 kg

Features
Features
  • Automated Measurement
  • Replaceable Test Cycle
  • High accuracy & rate of measurement
  • Durable Design
  • Apparatus safety from high voltage breakdown


FAQ
FAQ
Frequently Asked Questions (5 answered questions)
upto 2000 test results

Person name: Asian

Yes, data can be exported in MS word & MS Excel format.

Person name: Asian

The equipment has compact design & lightweight, weigh only 5kg.

Person name: Asian

0.0001 to 1.0

Person name: Asian
