P-900 Multifunction Pinpointing Receiver

P-900, a necessary accessory required to be used along with high voltage cable fault surge generator and TDR for acoustic based cable fault pinpointing.

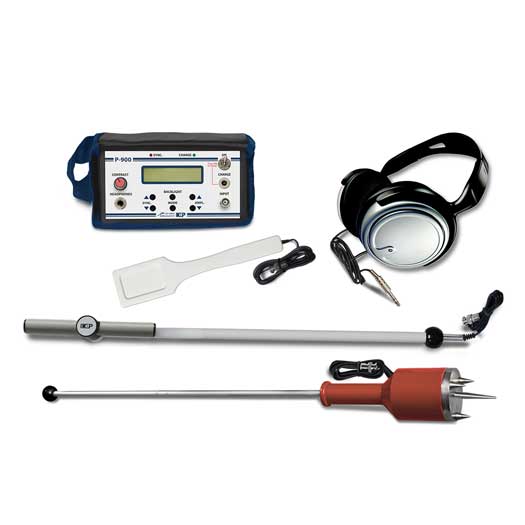

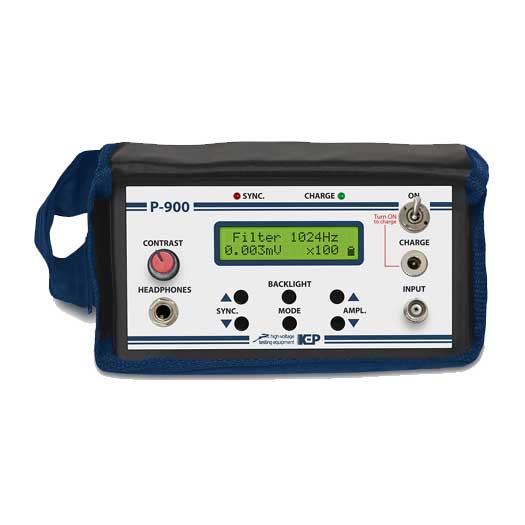

P-900 consists of a digital LCD display, headphone and acoustic / inductive sensor. The fault locating technician can '' listen" for the high voltage surges to locate exact point of fault on buried power cable.

P-900 serves two main functions:

  • Power cable fault pinpointing of buried power cables when used in conjunction with a suitable surge generator of sufficient energy providing HV pre-locating modes.
  • Inductive tracing of cables at 1024 / 2048 HZ when a suitable low frequency generator is used.

Specifications
Product Specification

Operating frequency, Hz

1024 ± 2 / 2048 ± 2

Sensitivity at highest amplification, μV

20

Sensitivity at lowest amplification, mV

500

Frequency band -3 dB, «1024 Hz» mode, Hz

10

Frequency band -3 dB, «2048 Hz» mode, Hz

12

Bandwidth in the acoustic mode, H z

20…2200

Built-in battery parameter s

5 AA x 1.2 V 2500 mAh

Continuous operation, hours, min

16

Weight with batteries, kg, max

0.65

Dimensions, W x H x D, mm, max

180 x 70 x 120

Ambient operation temperature, ˚C

- 10… + 40

Features
Features
  • Transflective sun-readable display
  • Acoustic and inductive modes
  • Built-in battery with 16 hour continuous duty-cycle
  • Easy operation, portable multi function unit
  • Compact case for storage and carrying of the complete system (optional)
