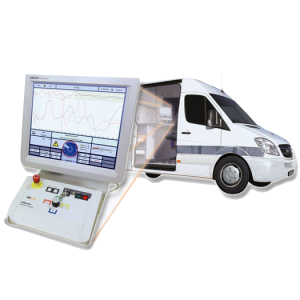

Megger NSF E- Combi System

  • Product Description
  • Specifications
  • Features

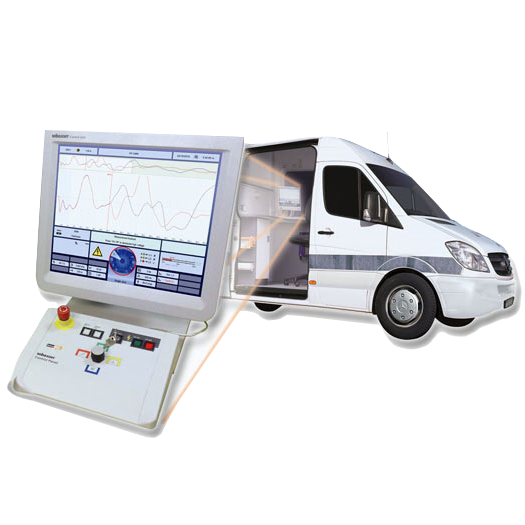

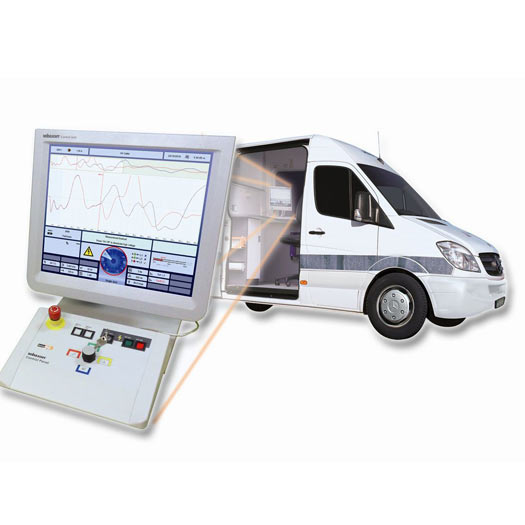

The Megger compact city cable fault test van  is a complete test- and fault location system suitable also for the installation into very small vehicles to allow entry or parking in typical city streets.It consist of the SPG 40, a mobile, multi-functual system for testing, prelocation, pinpointing and burning of cable faults in low and medium voltage networks. The system is controlled directly via the connected Teleflex T30-E reflectometer or the control panel, either integrated or as 19" version.

All function of the system are easily managed by the rotary encoder in the control panel. The system supports easy and clear handling, even for inexperienced users. All functions of the system are easily managed by the rotary encoder in the control panel. The system supports easy and clear handling, even for inexperienced users.

Key benefits:
  • High surge energy
  • Portable or vehicle installation
  • All essential HV prelocation methods integrated
  • Easiest operation with maximum safety





Technical Data
Power supply  230 V (115 V) 50/60 Hz
Max. connectable Power* 3.6 kVA** (see options)
Display TFT display 320 × 240, 3.7", color
Interfaces USB (service, updates, error logs)
Socket outlet 230 V, max. 10 A
safety function FU/EP safety system
Dimensions (W × H × D) 19" X 5U X 260mm
Weight 9 kg
Operating temprature -25 áµ’C … +55 áµ’C
Operating humidity +30 áµ’C, 93 % rel. hum.
Storage temprature -25 áµ’C … +70 áµ’C
Protection class IP 20
  • Implementation of stand-alone devices into a system
  • Effortless control of all the devices
  • No additional wiring between separates units
  • Maximum SebaKMT safety
