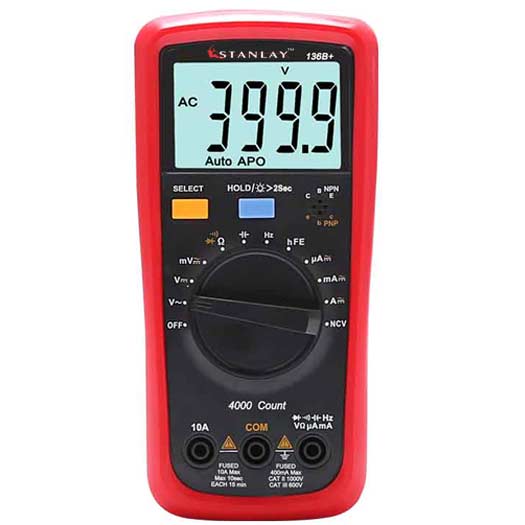

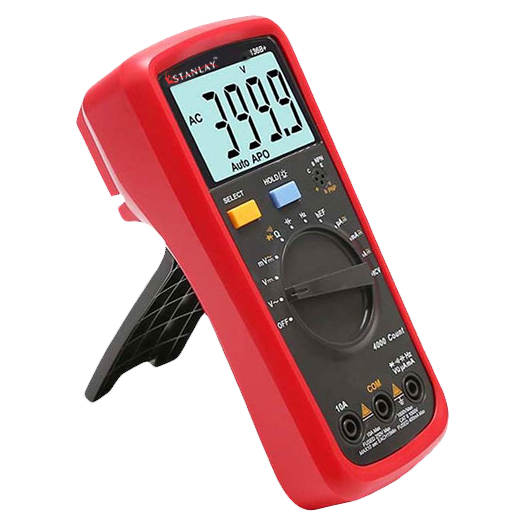

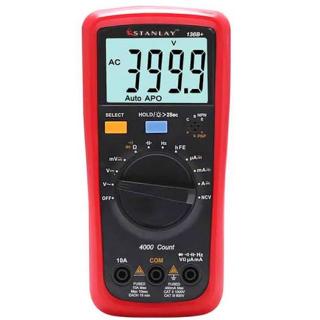

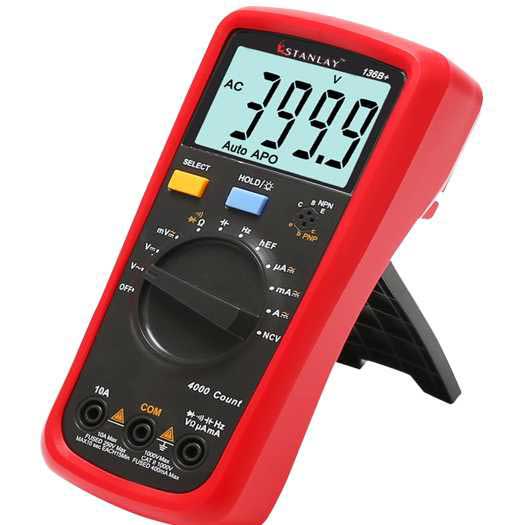

136B+ Digital Multimeter

136B+ auto ranging digital multimeter is designed to work safely in CAT II 1000V/CAT III 600V environment. 136B+ is suitable for civil/commercial use such as HVAC technicians and electricians and basic electrical testing in data & telecommunication centres.

Specifications
Product Specification

Auto range

√

Display Count

4000

Measurements

DC voltage

400mV/4V/40V/400V/1000V

± (0.7%＋3)

AC voltage

400mV/4V/40V/400V/1000V

± (1.0%＋3)

DC current

400uA/4000uA/40mA/400mA/4A/10A

± (1.0%+3)

AC current

400uA/4000uA/40mA/400mA/4A/10A

± (1.2%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

± (0.8%+2)

Capacitance

4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF

±(3%+5)

Frequency

400Hz ~ 40mHz

± (0.1%+4)

NCV

√

Continuity Buzzer

√

Diode/Transistor Test

√

Display

Backlight

√

Low battery indication

√

Auto power off

√

LCD size

60mm x 38mm

Other Features

Protective sleeve

3.0mm

Overload alarm

√

Category Safety Ratings

CAT Ⅱ 1000V, CAT Ⅲ 600V

General Characteristics

Size

175mm x 83mm x 53mm

Weight

330g

Power

1.5V battery (R6) x 2

Display

56.5mm x 36mm

Standard accessories

Batteries, test leads
Features
Features
  • Equipped with 3mm protective sleeve; 2 meters drop proof
  • Large LCD dual display; up to 4 times/s
  • Full range protection: can endure up to 1kV over voltage shock; overload alarm
  • Quick response rate
  • Low power consumption and auto power saving function; long battery service life (>500hrs)


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
Product Datasheet
application/pdf
739.49 KB
June 20 2019 16:15:25
