560XL Fiber Optic Power Meter

  • Product Description
  • Specifications
  • Features

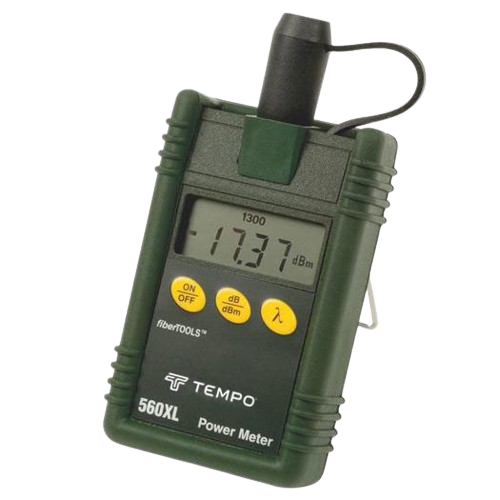

Greenlee 560XL Fiber Optic Power Meter measures optical power at 850, 1300,1310 and 1550nm and insertion.

The 560XL Fiber Optic Power Meter has multi-wavelength storage. It can store and recall reference power levels for quicker more accurate measurements making it the perfect tool for installing and testing fiber optic cabling. The 560XL uses Snap-On Connector interface (SOC) to connect FC, SC and ST connectors (sold as accessories). Multi-wavelength storage – record and recall reference power levels for quicker measurements



3 button operation – all functions are controlled easily (continuous wave output mode, modulated output mode and  selectable modulation frequency). Loss measurements in dB; power measurements in dBm.





Calibration Wavelengths 850nm, 1300nm, 1310nm and 1550nm
Power Range +3 dBm to -60 dBm
Accuracy ±0.25dB
Linearity at: +3dBm to -3dBm ±0.5dB
-3dBm to -50dBm ±0.05dB
50dBm to -60dBm ±0.5dB
Resolution 0.01dB
Power Requirements Two AA size 1.5V batteries (approx. 100 hours continuous operation)
Connector Interface FC, SC or ST
  • Easy to use - three buttons control all functions

  • Long battery life

  • Loss measurements in (dB); power measurements in (dBm)

  • 0.01dB measurement resolution

  • Snap on connector interface adapts to FC, SC and ST connectors. Contact Greenlee for other available adapters.

  • User selectable auto shut-off

  • Rugged and splash-proof

  • Economically priced
