CXL2 Cable Detector Tool

  • Product Description
  • Specifications
  • Features
  • Video

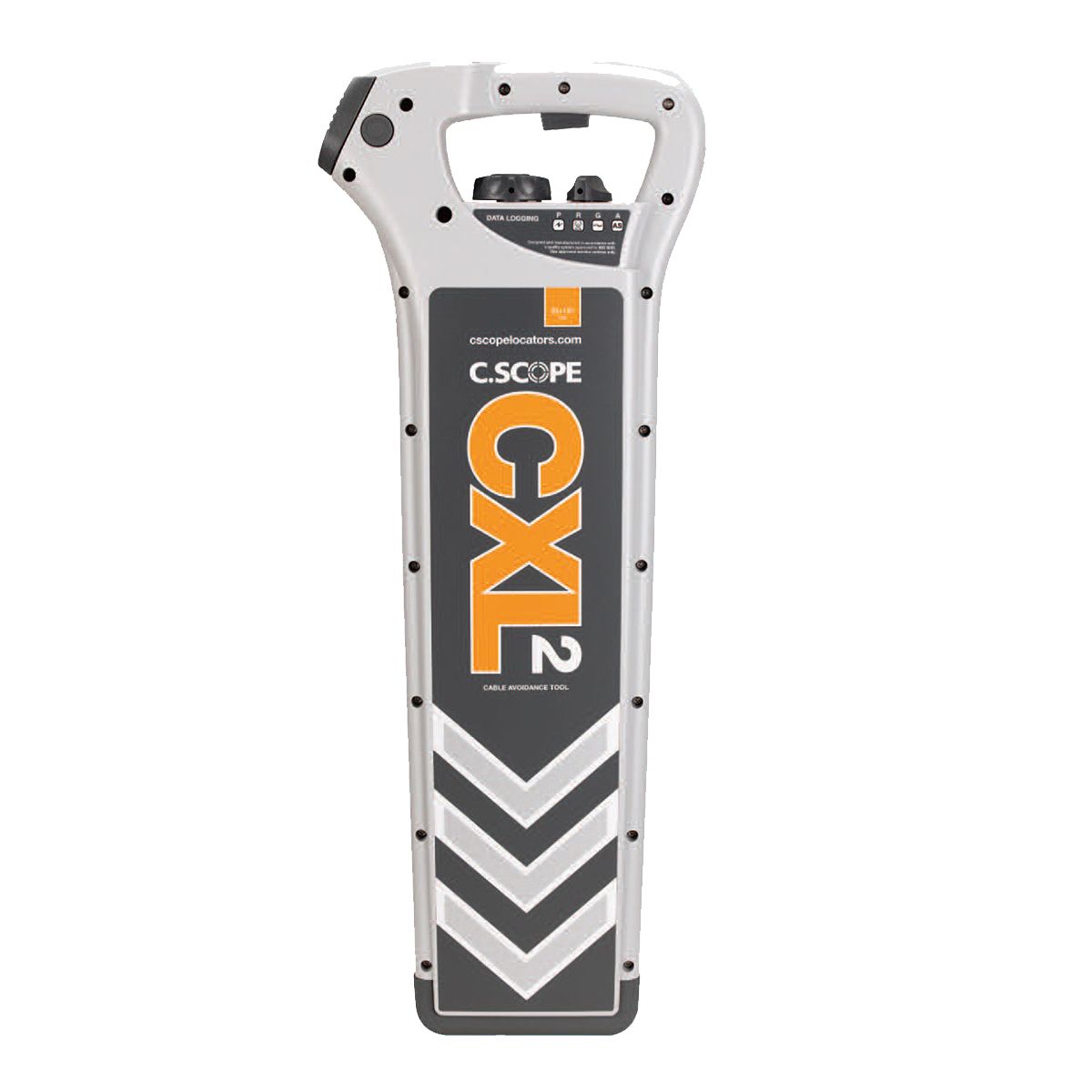

The CXL2 Cable avoidance tool is a fully Digital Cable Detector Tool to ensure avoidance and detection of the exact position of Buried Pipes and cables prior to any form of excavation work taking place, day or night by ground operators at any level.

It is provided as a locating receiver alone with the latest advanced digital signal processing technology.

The CXL2 cable finder has 4 modes of operation P:Power, R : Radio, G : Generator and A : All Scan Mode for locating buried metallic cables and pipes. The CXL2 has automatic signal interference rejection based on an improved double antennae system with appropriate vertical separation.

Multi segment LCD display with automatic backlight, detachable loudspeaker, sensitivity control,Replaceable wear foot/skid plate are some of the features that allow usage of the equipment on asphalt, rough and rocky surfaces or any ground operating condition. Equipment is IP65 certified for use in all weather conditions.

The CXL2 Cable detector tool does not provide depth measurement

Mode/ Feature Frequency Sensitivity Detection
  (Hertz) @1m depth Depth
Power 50-400 5mA up to 3m
Radio 10,000-30,000 25μA up to 2m
All Scan 50-32, 768 100μA up to 3m
Product Dimensions 720 x 280 x 65 (in mm)
Weight 2.6kg (including batteries)
Power Supply 8 x “AA” alkaline batteries
Battery Life Up to 40 hours intermittent use
Environmental Case sealed to IP 65
Temperature Range -20ºC to +50ºC
Approvals CE
Item Code ST-CXL2



POWER MODE

POWER MODE:

The POWER mode is the quickest way to detect most buried power cables by detecting the 50/60 Hz signal created by the electrical current itself, just using the CXL pipe & cable locating receiver on a stand alone basis.

RADIO MODE :

The RADIO mode detects re-radiated "radio" type signals that are often present on metal pipes and cables, allowing their position to be determined using just the CXL pipe & cable locating receiver on a stand alone basis.

RADIO MODE

ALL SCAN MODE:

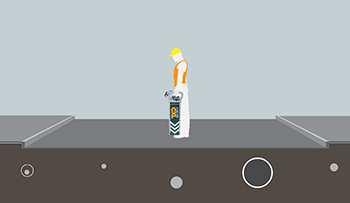

Innovative All Scan mode uniquely listens for all frequencies ranging from the lowest of the 50Hz signals right up to and including 33kHz. This all in–one mode detects unusual frequency signals present on pipes and cables often overlooked in the conventional Power, Radio or Transmitter Mode. All Scan Mode can often speed up the locating process with just one scan of the site.


ALL SCAN MODE
LCD DISPLAY

LCD DISPLAY :

Multi Segment backlight LCD display with bar graph for easy locating, pin pointing and direction/orientation of buried utility. LCD displays important operating parameters such as :

   » Signal strength
   » Battery condition
   » Confirmation of selected mode

EASY STEP 1 :

Method to know the orientation of the buried utility.The LCD display provides a maximum signal when over the centre of the buried utility (in a transverse position).


EASY STEP 1
EASY STEP 2

EASY STEP 2 :

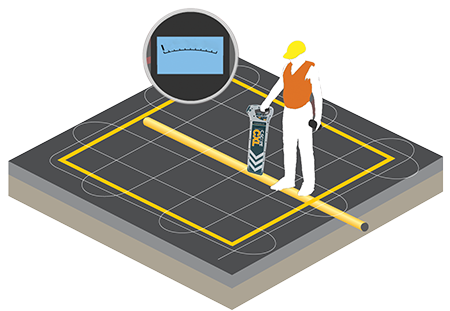

Once located, simply turning the locator to become parallel to the buried utility reduces the located signal to a zero which is the indication of the orientation/direction of the buried utility.



SENSITIVITY CONTROL :

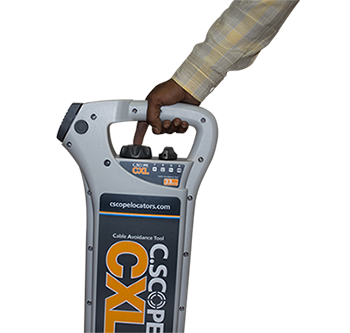

Sensitivity control to ensure very precise locating.

SENSITIVE CONTROL


DETACHABLE LOUDSPEAKER :

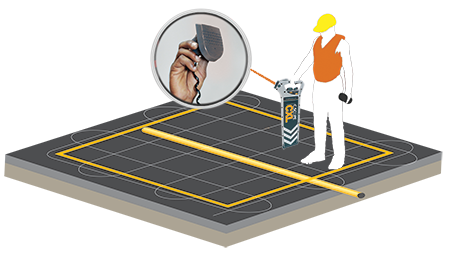

Detachable loudspeaker to allow operation of instrument in noisy environments.


DETACHABLE LOUDSPEAKER


DOUBLE ANTENNAE


DOUBLE ANTENNAE :

Double Antennae system with appropriate vertical separation which rejects interference/ambient signals such as signals from overhead power lines, for precise locating.



DUAL BATTERY PACK

DUAL BATTERY PACK:

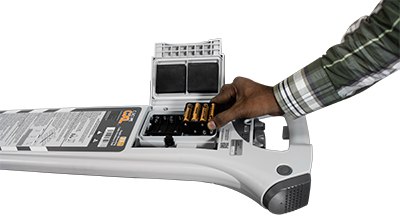

Unit includes a DUAL battery pack (Main + Spare) in the internal battery compartment to ensure unhindered usage of equipment at site.The operator simply needs to replace the main battery pack with the auxiliary battery pack at site.

Equipment is based on standard off the shelf "AA" batteries.


REPLACEABLE WEAR FOOT/SKIDPLATE:

Replaceable wear Foot/Skidplate allows usage of the equipment on asphalt, rough & rocky surfaces.


REPLACEABLE WEAR FOOT/SKIDPLATE
 Product Info Downloads
 Product Video & Training
 Related Article
Why is datalogging important in buried pipe & cable locators.
While the cable pipe detector such as the CSCOPE DXL2 cable avoidance tool are thoroughbred professional tools for detecting cables & pipes

which are built to perform, if there is ...

Stop Before You Dig
The civic layout of India based on the growing need for housing and roads has changed beyond recognition. As a result As-built maps of underground utility assets, if existing , have been rendered redundant and cannot ...
