CBC 100C Automatic Electrical Glove Boot Tester

Automatic Electrical Glove & Boot Tester

CBC-100C glove testers are fully automatic electrical glove & boot tester designed for high-voltage withstand testing carried out with an AC voltage up to 100 kV RMS  for electrical protective equipment and insulated hand tools at industrial frequency (f = 50 Hz), with test bath upto 15 kV.

CBC-100C electrical protective equipment tester conducts acceptance and performance electrical tests of protection means used in electrical installations.

The System enables testing the following items:

  • dielectric rubber gloves.
  • dielectric rubber footwear.
  • hand tools with insulated handles (screwdrivers, cutters, pliers, etc.).

The System can be used as a high-voltage installation for testing the insulation of various items (cables, insulators, etc.) with alternating current.

The CBC-100C  dielectric high voltage glove testers are able to operate in a fully automatic mode- the supply, stabilisation and control of the test voltage is carried out automatically, while the filling and drainage of the test bath is done by an electric pump.

Multi Module Design:

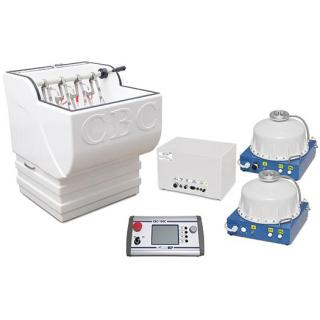

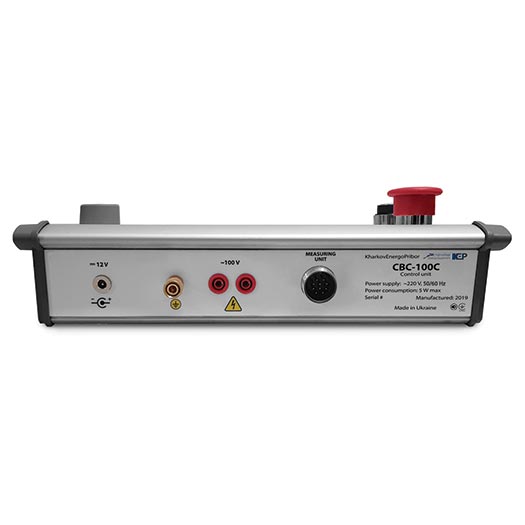

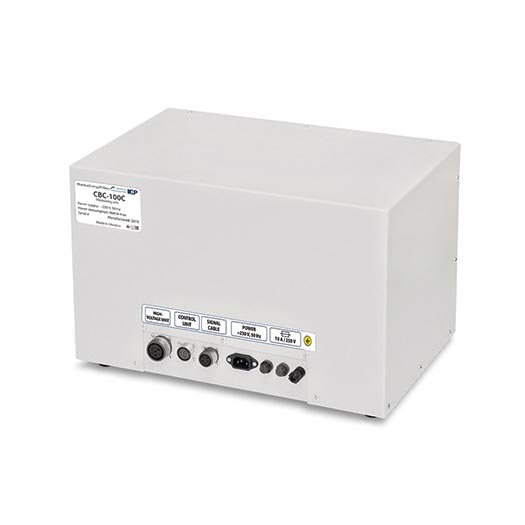

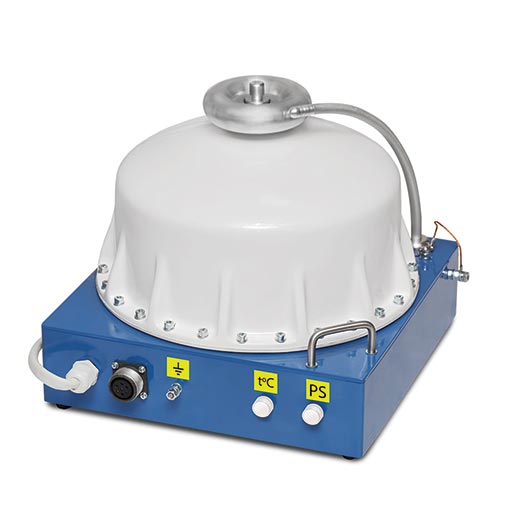

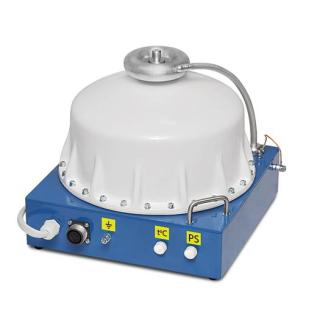

The High voltage glove testing equipment comprises of control, high-voltage and measurement units, as well as a separate test bath. Such multi-module design allows an operator to remain at a safe distance away from high-voltage circuit and the test bath.

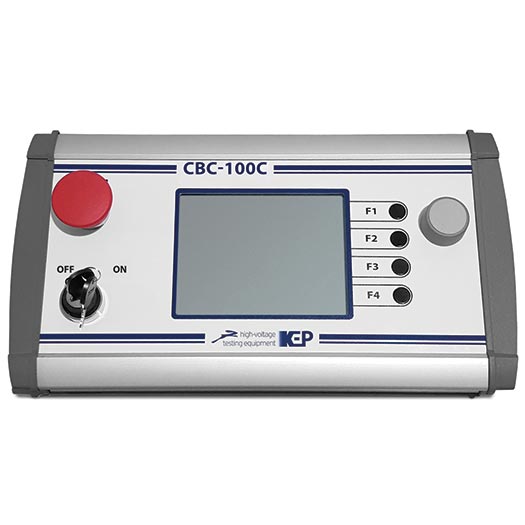

Digital Control & Monitoring:

  • The CBC-50 C dielectric glove testers have five pre-set output voltage levels, as well as one user-defined one.
  • Test duration is set and monitored via a built-in timer.
  • Leakage current is displayed throughout the entire test cycle.
  • Upon detecting a breakdown, the system indicates the specific glove the breakdown has occurred in and automatically terminates the test.

Safety Measures:

CBC systems of 100 C-series include the following operational safety measures:

  • Overcurrent protection.
  • Short-circuiter on the high-voltage outlet.
  • Protective earthing.
  • Fuses.
  • Sulphur hexafluoride gas pressure monitoring in the high-voltage unit (units).
  • Emergency stop button



Specifications
Product Specification



Test modes and parameters "Neon lamp, 100 V" Output voltage adjustment and indication range 20 … 100 VRMS
"Test bath, 15kV" 1 … 15 kVRMS
"BVI-50" 10 … 50 kVRMS
"BVI-100" 10 … 100 kVRMS
Leakage current threshold 10 mA
Number of simultaneously testable objects up to 4
Relative voltage and leakage current indication error ± 3 %
Safety Grounding Protective earthing
Operating grounding
Automatic grounding bar
Protection Overcurrent
Thermal overload warning
Low internal gas pressure warning
High voltage presence signalling Light signalling
High voltage switch off EMERGENCY STOP button
Power keylock switch
Safety interlock
Power supply and consumption Mains supply voltage 230 VAC, ± 10 %
Mains supply frequency 50 Hz (60 Hz option)
Power consumption up to 1.5 kV•A
Physical Control unit dimensions, H × W × D 97 × 344 × 193 mm
Control unit weight
High-voltage unit dimensions, H × W × D 334 × 364 × 381 mm
High-voltage unit weight 26.5 kg × 2
Measurements unit dimensions, H × W × D 175 × 368 × 254 mm
Measurements unit weight  22 kg
Bath dimensions, H × W × D 900 × 700 × 820 mm
Bath weight (with accessories, empty)  38 kg
Features
Features



  • Testing carried out with an AC voltage up to 100 kV RMS
  • Allow test in automatic mode
  • 5 preset output voltage
  • Built in timer for monitoring test duration
  • Multi module design ensures operator safety
  • Display leakage current
  • Auto-shut test operation if breakdown voltage detected


FAQ
FAQ
Frequently Asked Questions (5 answered questions)
10 mA

Person name: Asian

Multi-module design allows an operator to remain at a safe distance away from high-voltage circuit and the test bath while operating.

Person name: Asian

100 kV RMS

Person name: Asian

Up to 4 objects can be tested at one time simultaneously.

Person name: Asian
