The TestPro CV100 by AEM is a next-generation Multifunction Cable Certification and Verification Tool (C = Certification, V = Verification) for structured cabling systems. Built for network professionals, system integrators, and IT engineers, it combines high-speed copper and fiber certification, PoE validation, and multi-gigabit Ethernet testing in a rugged, handheld platform engineered for precision and performance.
Certification: The TestPro CV100 ensures that a new building’s network is ready from day one — delivering high-speed connectivity, reliable PoE power delivery, and clear, professional proof-of-performance reports from a single device. It tests and certifies the data-carrying capability and Power over Ethernet (PoE) performance of newly installed structured cabling networks from Category 3 through Category 8.2, including Tier 1 fiber optic certification for single mode and multimode systems.
Verification: Professional cable installers are required to verify installations and provide standards-compliant test reports as part of structured cabling manufacturer warranty programs. The TestPro CV100 is approved by leading structured cabling manufacturers for use in their warranty processes, ensuring that all installations are fully validated and backed by manufacturer support.

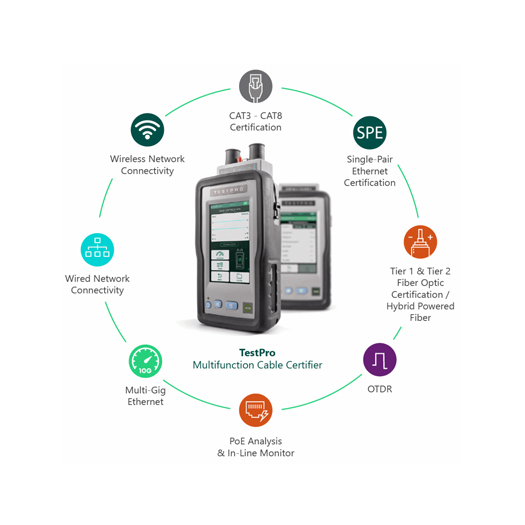

All-in-One Testing Power: The TestPro CV100 helps achieve fast and accurate project completion, reduces downtime, and lowers operational costs by replacing multiple testing instruments with one modular platform. Its PoE TruePower™ and SNR-based testing capabilities deliver accurate fault diagnosis across cabling, switches, and power sources — while automated, standards-compliant reports simplify documentation, verification, and warranty submission.
Future-Ready Performance: Built for the next generation of networks, the TestPro CV100 can certify CAT6A links in just 6 seconds, analyse PoE load up to 90W, and qualify multi-gigabit link speeds up to 10 Gigabit Ethernet, ensuring complete readiness for 2.5G/5G/10G infrastructures. Ideal for smart buildings, data centres, industrial automation, and enterprise IT environments, the TestPro CV100 guarantees reliable, scalable, and high-performance connectivity — all in a durable, touchscreen-enabled design made for demanding field conditions.
Applications:
Key Features:
Technical Specifications:
| TestPro Platform (All Versions) | |
| Measurement Time | CAT6A auto-test (including TCL and resistance unbalance tests): 6 sec CAT8 Class II auto-test: 30 sec |
| Wiremap | All possible wire connection situations identified, as long as two wires are connected end-to-end on any pins |
| DC Resistance | Range: 0 to 100 W Loop resistance, pair-to-pair resistance unbalance measurement meets TIA 1152A specs |
| Tone Generator | 730Hz and 1440 Hz |
| ual-Ended RF Measuremen IL, RL, NEXT, ACR-F, TCL | All mandatory and optional RF measurements as per TIA and ISO/IEC standards Single-pair link testing license with supported length for dual ended testing greater than 1,000 m |
| Length (Propagation Delay Measurement | Dual ended test: 0-600m with 0.1m resolution (0-6,000 nsec with 1 nsec resolution) Delay skew measurement with 1 nsec resolution |
| Supportable Cabling | 4-pair twisted pair cable 1-pair twisted pair cable Coax cable Optical cables (SM/MM pair) |
| TDR-RL | 0-100 m (resolution: 1 m) Distance-to-fault |
| TDR-NEXT | 0-100 m (resolution: 1 m) |
| Impedance | 0-1000 Ω 0.1 Ω resolution in 90-110 2 range |
| Test Standards Compliance & Conformity | |
| Copper Certification | ANSI/TIA-568.2-D, ISO 11801 ANSI/TIA-1152-A (Levels IIIe and 2G), IEC 61935-1 Ed. 4 (Levels IIIe and V) and IEC 61935-1 Ed. 5 Draft 46/595/CD (Levels VI Class I and Class II) |
| Fiber Optic Certification | TIA-568.3-E and ISO/IEC 14763-3 Ed 2.1 |
| Single Pair Ethernet | SPE Cabling Standards: TIA 568.5 (in draft), ISO/IEC TR 11801-9906-2020. SPE Field Test standards: TIA-5071 (in draft), IEC-61395-4 (in draft). IEEE Single Pair Ethernet Application standards supported: 1000BASE-T1, IEEE 802.3bp; 100BASE-T1, IEEE 802.3bw; 10BASE-T1, IEEE 802.3cg. |
| Power Over Ethernet | IEEE 802.3 af/at/bt, UPoE |
| Multi-Gigabit Link Speed Testing |
IEEE 802.3 up to 10GBASE-T |
| Wired Network Connectivity Testing |
CDP, LLDP |
| Wireless Network Connectivity Testing |
IEEE 802.11N & IEEE 802.11AC maximum wireless speed up to 300Mbps on 2.4GHz band or up to 866Mbps on 5GHz band |
| TestPro Platform (All Versions) Each platform in a kit comes with a Certificate of Calibration traceable to NIST. | |
| Size |
200mm X 105mm X 50mm |
| Display | 5” TFT color touch screen, resolution 800 x 480 pixels |
| Battery | Li-Ion, 3.7V / 13,200 mAh, 9 hr battery life typical |
| Power Adapter | 5V, 3A (supplied), 5-12V (supported), 2.1mm DC jack |
| Platform Operating System | Linux |
| USB Interfaces | USB A for flash drive storage, Micro USB for connecting to PC |
| RJ-45 Side Port | 10/100/1G network connectivity test port |
| Test Adapter To Platform Interface |
High-frequency connector rated for 5000 insertion cycles, Hot-swappable |
| Measurement Engine | 9-channel dual-ended mixed-mode RF and DC measurement engine. Industry’s highest performance patent-pending measurement architecture for data cable testing. |
| Frequency Range | 0.1 – 3,000 Mhz |
| Power Over Ethernet (K60E, K61E, K71E) |
|
| Features/Test Function |
PoE source type detection, Load test up to 90W, Identification of PoE pairs, Substained load monitor |
| Multi-Gigabit Ethernet (K60E, K61E, K71E) |
|
| Autotest Parameters |
Signal to Noise Ratio at each speed across each pair, Cable Diagnostics, PoE Detection |
| Network Testing | Ethernet network discovery, Switch detail (Port, VLAN, Capabilities), Traceroute Traffic generator/monitor, Ping, TCP Connect, Wi-Fi : Identify SSID’s and measure RSSI |
| Fiber Optic - Common to both MM and SM (K11E, K41E, K51E, K61E, K71E) | |
| Test Interface | Supplied Test Interface: interchangeable FC on Tx port and interchangeable LC on Rx port. FC-LC (Tx) and LC-LC (Rx) Test Reference Cords included with all adapter kits (AD-MM-K01E, AD-SM-K01E. All TestPro Kits with fiber option include above plus SC interface adapters for Tx and Rx ports, FC-SC (Tx) and SC-SC (Tx and Rx) Test Reference Cords. |
| VFL Light Source | Wavelength 650nm |
| Volt-Ohm Meter Measurement Range, Hybrid Powered Fiber |
0-60V DC, 0-100 Ω |
| Fiber Optic - Multimode and Singlemode Adapter - Specific Information | ||
| Wavelengths | 850 nm, 1300 nm | 1310 nm, 1550 nm |
| Light Source | LED | Fabry-Perot Laser |
| Transmit Power | -20dBm typical | -2dBm typical |
| Encircled Flux | Compliant to IEC-61280-1-4 and TIA52614-C-2015 as per supplier data sheet | Not applicable |
| Length Measurement | Range: up to 2km (subject to maximum of 10dB link loss), Length measurement resolutions: 0.1m | Range: up to 20km (subject to maximum 20dB link loss), Length measurement resolution: 0.1m |
| Dual Ended Loss | Dual ended loss measurement: 0 to -10dB | Dual ended loss measurement: 0 to -20dB |
| Fiber Optic - OTDR | ||
| Parameter | Multimode | Singlemode |
| Wavelength Range | 850 nm +/- 10 nm, 1300 nm +35/-15 nm | 1310 +/- 25 nm, 1550 +/- 30 nm |
| Compatible Fiber Type | 50/125 µm, 62.5/125 µm for multimode | Single mode |
| Event Dead Zone | 2.5 m typical for 850 nm, 4.5m typical for 1300 nm | 0.6 m typical for 1310 nm, 0.6 m typical for 1550 nm |
| Attenuation Dead Zone | 2.5m typical for 850 nm, 4.5m typical for 1300 nm | 3.6 m typical for 1310 nm, 3.7m typical for 1550 nm |
| Dynamic Range | 25dB for 850 nm, 27dB for 1300 nm | 29dB for 1310 nm, 27dB for 1550 nm |
| Max Distance Range Setting | 40 km | 130 km |
| Distance Measurement Range | 9 km for 850 nm, 35 km for 1300 nm | 80 km for 1310 nm, 130 km for 1550 nm |
| Reflectance Range | -14 dB to -57 dB for 850 nm, -14 dB to -62 dB for 1300 nm | -14 dB to -65 dB for 1310 nm, -14 dB to -65 dB for 1550 nm |
| Pulse Width | 3, 5,10, 15,…,24995, 25000 nsec | 3, 5,10, 15,…,24995, 25000 nsec |

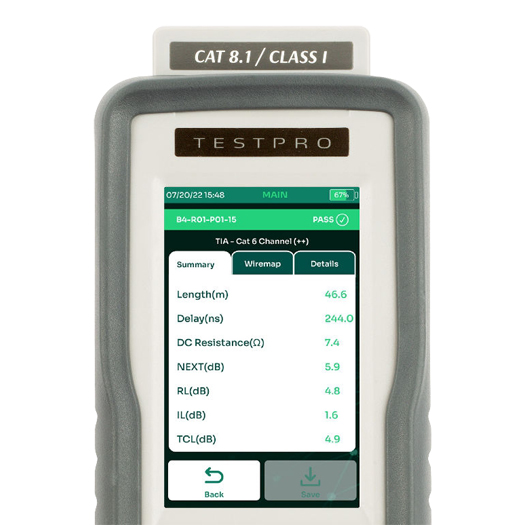

The TestPro CV100 performs a complete CAT6A Autotest in just 6 seconds, including parameters such as Return Loss, NEXT, TCL, ELTCTL, and DC Resistance Unbalance.
This speed allows installers to test more links per day, reducing labor time and project costs.
TestPro CV100 supports CAT3 through CAT8.2 and Class I / Class II structured cabling systems.
Its 3000 MHz (3 GHz) measurement platform exceeds the 2000 MHz requirement, ensuring investment protection for emerging standards and future Ethernet speeds up to 40 Gigabit.
Yes. It performs comprehensive PoE validation (refer product selection guide for models which offer the feature), including:
• Load testing for real power at the device jack
• Voltage, current, wattage, and class identification
• Support for IEEE 802.3 af / at / bt and UPoE standards
• Sustained load monitoring using an external load box to detect power fluctuations
This ensures the installed cabling and PSE (switch or injector) meet PoE device power demands up to 90 W.

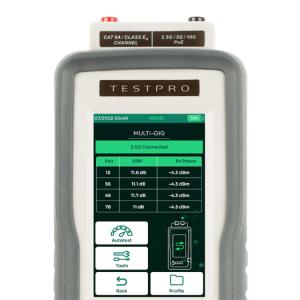

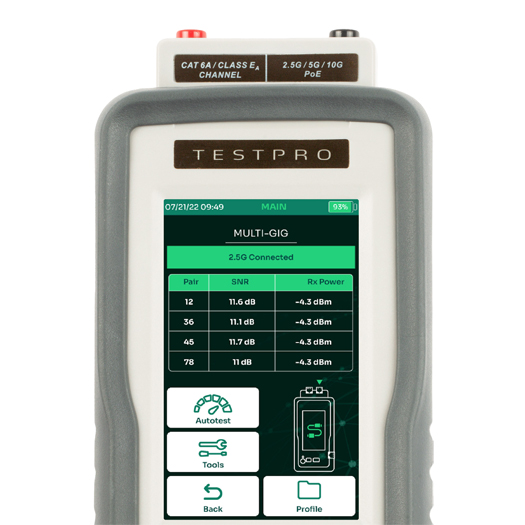

The CV100 verifies cabling readiness for 1G / 2.5G / 5G / 10G Ethernet using Signal-to-Noise Ratio (SNR)-based testing under simultaneous traffic and PoE load.
It provides a Pass/Fail indication with per-pair headroom detail, ensuring the cabling can reliably support higher network speeds — essential for Wi-Fi 6/6E and 10G infrastructure.
Yes. With optional adapters, it supports:

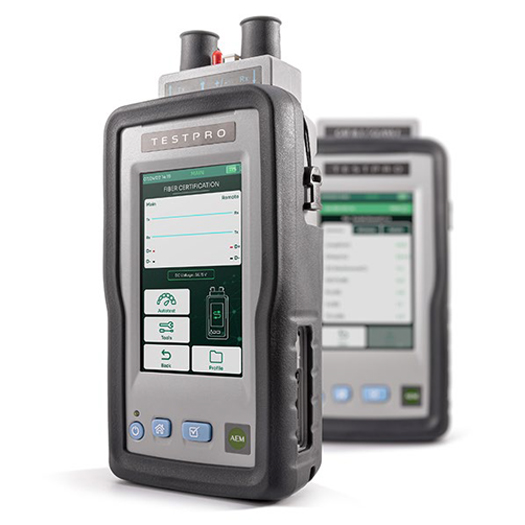

• Tier-1 (Optical Loss Test) for Multimode & Singlemode fibers
• Tier-2 (OTDR) testing for pinpointing faults or loss events

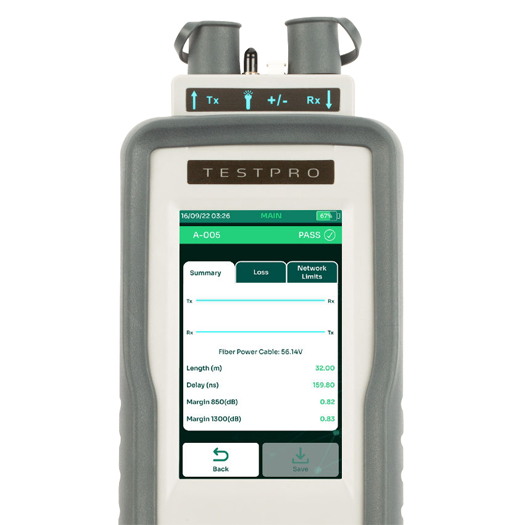

• Hybrid Powered Fiber voltage/resistance checks
• Visual Fault Locator (VFL) and USB-connected Fiber Inspection Probe for end-face cleanliness
All measurements are compliant with TIA 568.3-E and ISO/IEC 14763-3 standards.
TestPro CV100 integrates wired and wireless network testing, including:
• Network discovery showing connected devices, switch port/VLAN, and IP/MAC details
• Ping / Traceroute / Tone generator for troubleshooting
• Wi-Fi testing (via optional Edimax EW-7822ULC USB adapter) for SSID discovery, RSSI, and roaming verification.
Every unit includes TestDataPro PC Software and access to TestDataPro Cloud.
• Store > 10,000 results in memory
• Upload results wirelessly or via USB
• Generate automated PDF reports for copper, fiber, PoE, and network tests
• Reports are standards-compliant and suitable for project handover or warranty submission.
AEM provides an extensive range of “Optional” hot-swappable test adapters, including:
• Channel / Permanent Link (CAT8.1, CAT8.2)

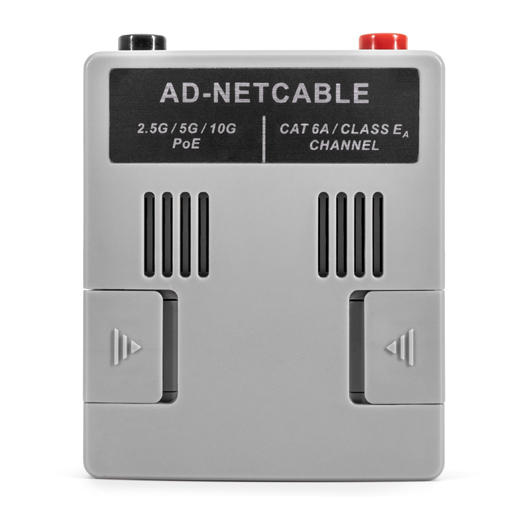

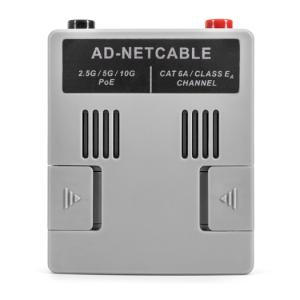

• PoE + Multi-Gig (AD-NET-CABLE)
• Single Pair Ethernet (SPE) IEC 63171-1 and 63171-6
• Fiber Loss & OTDR Kits (SM / MM)
• Coax, M12, Patch Cord, and Bare Wire adapters
Adapters can be easily interchanged to extend functionality.
Yes. The TestPro CV100 is approved by leading structured cabling manufacturers for use in their system warranty programs.
Installers can generate certification reports recognized by the manufacturer for warranty validation.
• Standard: 2 years on the platform, 1 year on adapters
• Extended: Up to 5 years upon product registration
• AEM Extended Care Plans available for additional coverage, damage protection, and calibration support.
Stanlay provides sales, service, calibration, and technical support in India.
Yes. The platform is modular and upgradeable — new features (e.g., OTDR, Multi-Gig, SPE) can be added through hot-swappable adapters or software activation, protecting your investment as standards evolve.
