HVTS HP-140kV-Automatic-AC-DC Hipot-Tester

Mobile high-power high-voltage test systems HVTS-HP are designed for high-voltage testing of solid dielectrics with low and medium electric capacitance (power cables, switchgear, surge arresters, busbars, insulators, etc.) with DC (rectified) voltage up to 140 kV at industrial frequency of 50 Hz.

HVTS-HP series systems can output high current at high voltages, making them suitable for conducting a multitude of tests according to a wide range of standards and regulations

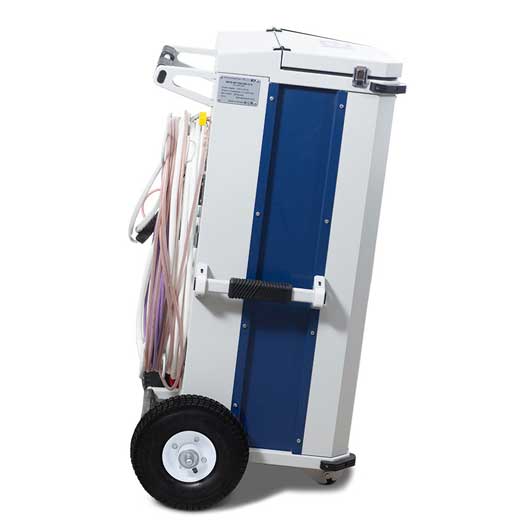

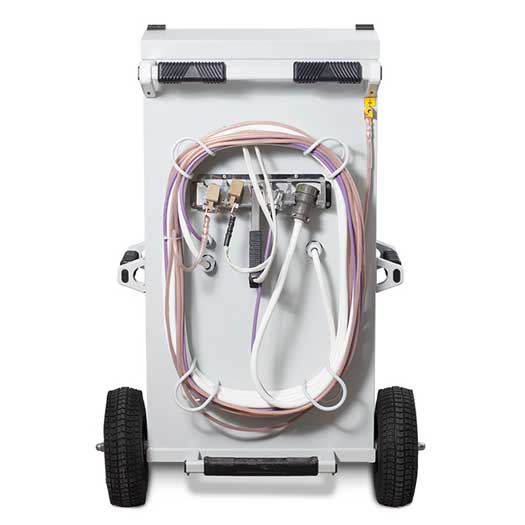

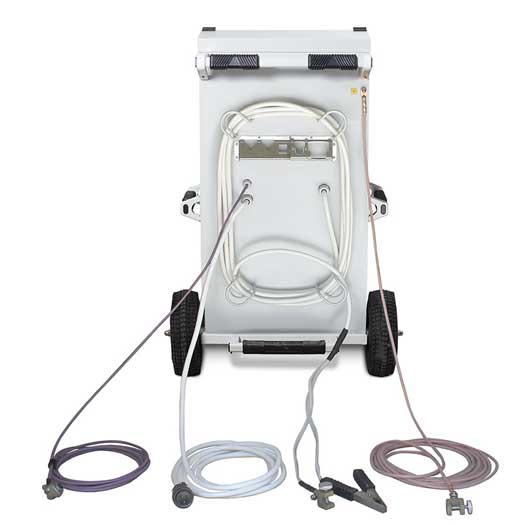

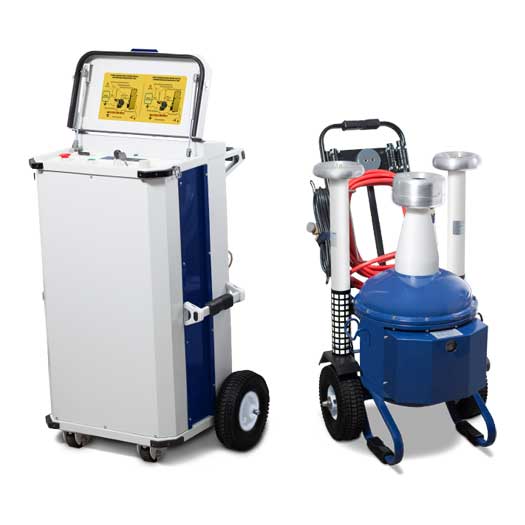

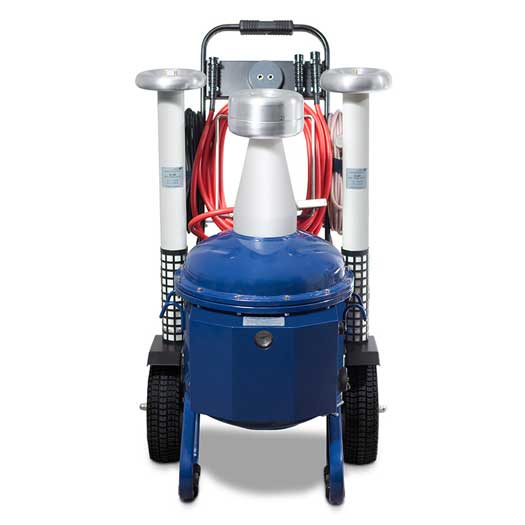

The systems comprise of a control and a high-voltage mobile unit, each built in a form of a trolley. The control unit is a mobile operator station powered from industrial mains and used to control the high-voltage unit from a safe distance.The high-voltage unit contains a step-up transformer with SF6 insulation, as well as a high voltage divider and a rectifier.

HVTS-HP benefits from a graphic display and digital control, which allows running tests in manual and automatic cycles, as well as storing test results in internal memory of the system.

The systems feature an overcurrent, overvoltage, and overheating protection.

Request Quote
HVTS HP-140kV-Automatic-AC-DC Hipot-Tester
Features Specifications FAQ Downloads



Features
  • DC & AC test modes
  • High power output
  • Safe two-module composition
  • Mobile design
  • Graphic display and digital control
  • Manual & automatic test cycles
  • Internal memory for test results storage
  • Overcurrent, overvoltage, and overheating protection
Specifications



DC Testing Parameters

Voltage

Output level

up to 140 kV

Relative measurement error

± [3 % + 2 dgt*]

Current

Output level

up to 30 (60) mA**

Measurement error

 ± [3 % + 2 dgt]

AC testingparameters

Voltage

Output level

up to 100 kVRMS

Measurement error

± [3 % + 2 dgt]

Current

Output level

up to 75 (175) mARMS

Measurement error

± [3 % + 2 dgt]

Load capacitance in AC mode@ rated output voltage

up to 2.4 (5.4) nF



System parameters

Testing modes

·         Manual

·         Automatic

Voltage ramp rate

0.5 … 4.0 kV/s, step 0.5 kV/s

Internal memory

32 test reports

Interface

Monochrome graphic display

128 × 64 px

Interface languages

English



Protection

· Over-voltage tripping

· Over-current tripping

· Thermal overload warning

· Low pressure warning

Power supply and consumption

Supply voltage

230 V ± 10 %, AC

Supply frequency

50 Hz

Power consumption

up to 9 (19) kVA

Current consumption

40 (82) A***



Physical

CU dimensions, H × W × D

1063 × 735 × 561 mm

CU weight

82 (127) kg

HVU dimensions, H × W × D

1012 × 639 × 750 mm

HVU weight

125 kg
FAQ

In the terminology of HVTS-HP, what does 7.5 and 17.5 denote.

HVTS HP is available in the following model options :

HVTS-HP-100/100 provides 100kV in DC and 100kV AC
HVTS-HP-140/100 provides 140kV in DC and 100kV in AC

Furthermore, 7.5 and 17.5 in the naming of the HVTS-HP model means the max. output power of 7.5 and 17.5 kVA respectively.
