HVTS-70/50-70kV Automatic AC DC Hipot Tester

Automatic Hipot Tester

Portable high-voltage test system HVTS-70/50 AC/DC HIPOT is an effective and cost efficient solution for high-voltage testing of solid dielectrics with low and medium electric capacitance (power cables, switchgear, surge arresters, busbars, insulators, etc.) with DC (rectified)voltage up to 70 kV and high-voltage testing of other objects with AC voltage up to 50 kV RMS at industrial frequency (f = 50 Hz.)

HVTS is a latest generation AC/DC HIPOT that provides Automatic Cycle tests with option of Manual cycle testing

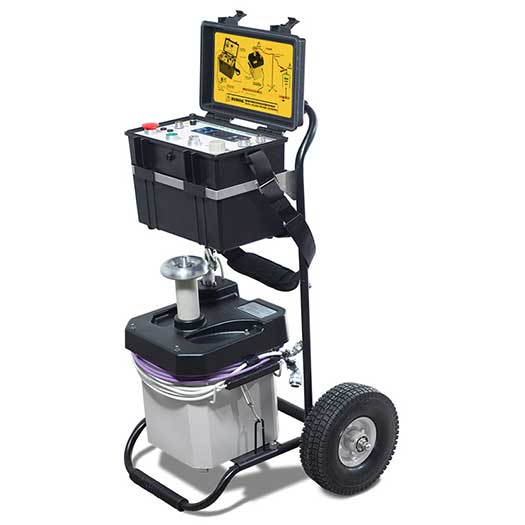

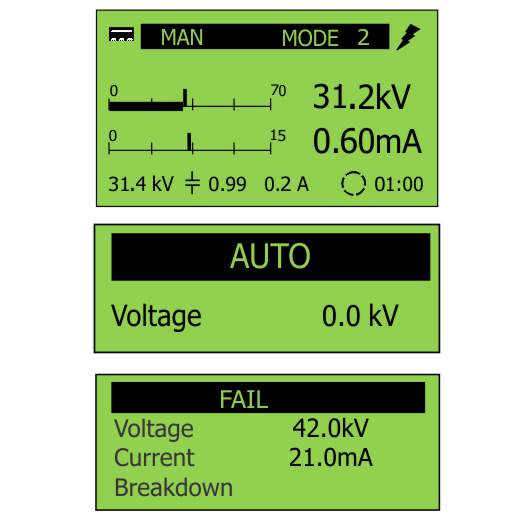

HVTS-70/50 benefits from a graphic display and digital control, which allows running tests in manual and automatic cycles, as well as storing test results in internal memory of the system. All measurements are displayed on the backlit LCD display, with analog ammeter & voltmeter emulated on the digital display. Provided in an easy to transport car to allow easy on field testing.

Output voltage type is selected by a simple push of a button on the control unit - no additional equipment installation (e.g. rectifier) is required.

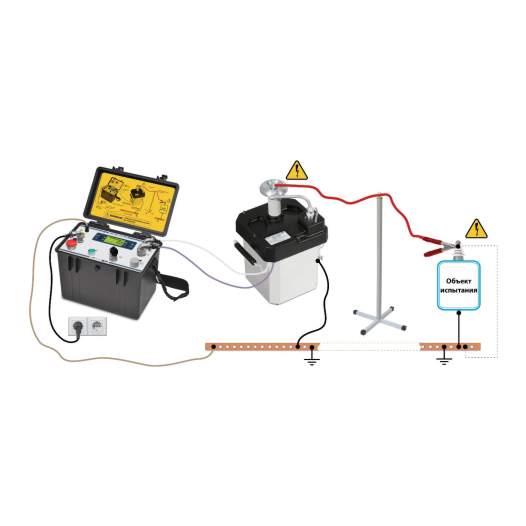

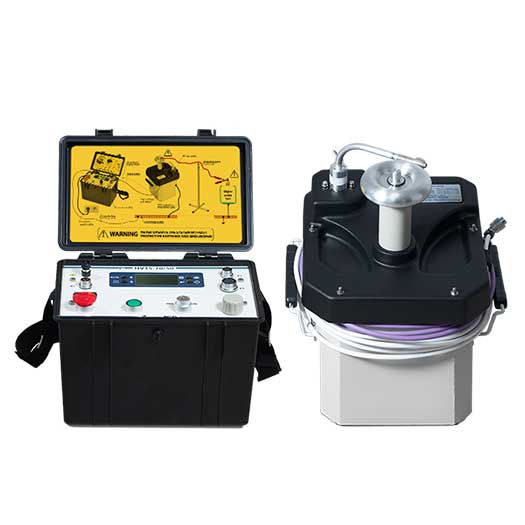

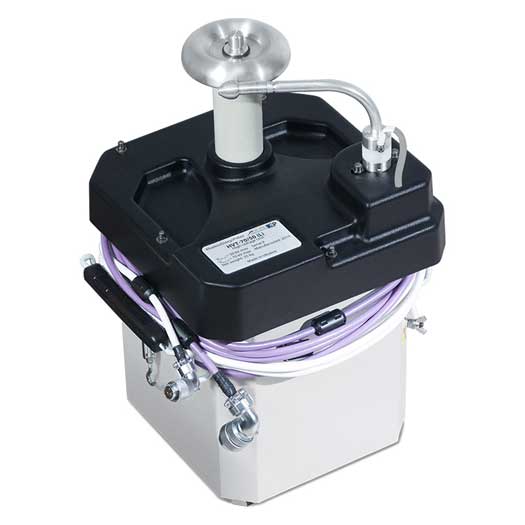

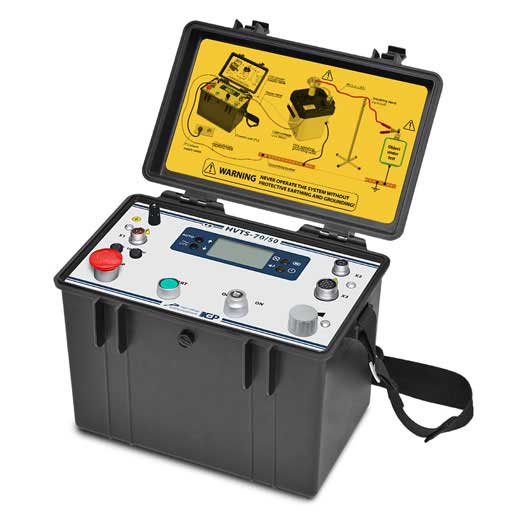

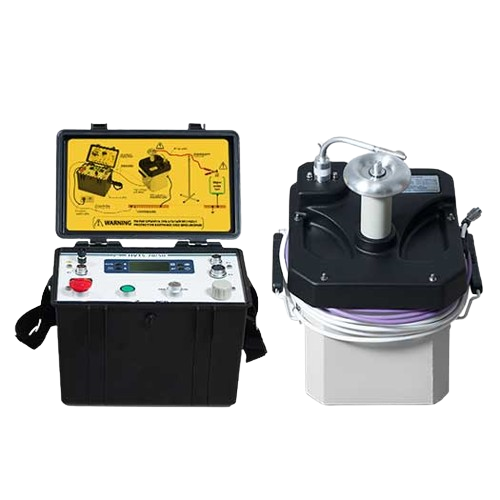

The system comprises of two separate modules - a control unit and a high-voltage unit. The control unit is powered from industrial mains and used to control the high-voltage unit from a safe distance. The high-voltage unit contains a step-up transformer with oil insulation.

The system features an over current and over voltage protection and is equipped with a built-in automatic grounding bar.

Product Specification

DC testing Parameters


Output level

Upto 70 kV

Relative measurement error

± [3 % + 2 dgt]


Output level

Upto 15 mA | optional:25mA *

Relative measurement error

± [3 % + 2 dgt]


AC testingparameters


Output level

Upto 50 kV RMS

Relative measurement error

± [3 % + 2 dgt]


Output level

Upto 40 mA RMS*

Relative measurement error

± [3 % + 2 dgt]

Load capacitance in AC mode @ rated output voltage

Upto 1.6 nF

System parameters

Test modes

· Automatic & Manual

Voltage ramp rate

0.5 … 4.0 kV/s, step 0.5 kV/s

Internal memory

32 test reports







Monochrome graphic display

128 × 64 px

Menu languages



Preset ranges of 1 minute, 5 minutes; plus custom set range between 10 to 59.59 minutes, programmable

Output voltage / current limit control

Maximum Output voltage and current limits settable

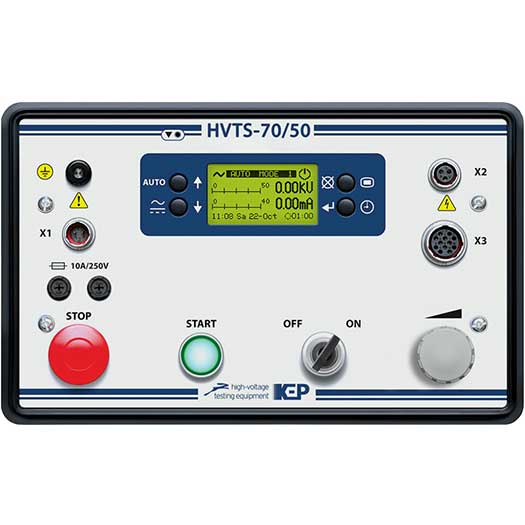

Instrument control

1. Push button for menu control, AUTO Test, Timer control

2. Rotary knob with encoder to change output level manually

3. Start button


Settable and displayed on system


Option for sound ON/OFF

Voltmeter & Ammeter

Emulated on Digital display


Audio + visual alarm at breakdown trip







· Over-voltage tripping

· Over-current tripping

· Automatic grounding bar



· Conformance to EMC Emissions

· Conformance to EN 61326-2-1: 2013

· Conformance to EN 61010-1: 2010


CE Certified

Power supply and


Supply voltage & Supply frequency

230 V ± 10 %, AC (110 V option) 50 Hz (60 Hz option)

Power consumption

up to 2.5 kVA

Current consumption

up to 10 A @ 230 V






CU dimensions, H × W × D

265 × 349 × 240 mm

CU weight

13 kg

HVU dimensions, H × W × D

500 × 360 × 310 mm

HVU weight

35 kg



Supply includes

· HV Test cable, 1mm2, 4 meters length, red color

· Power supply cable, 5meters length, black color

· Earthing cable, 4mm2, 4 meters length

· Operating grounding cable, 4mm2, 4 meters length

Optional: Transport trolley

  • DC & AC test modes
  • Safe two-module composition
  • Portable design
  • Graphic display and digital control
  • Automatic & Manual test cycles
  • Internal memory for test results storage
  • Built-in automatic grounding bar
  • Overcurrent and overvoltage protection
Frequently Asked Questions (6 answered questions)

Person name: Asian

HVTS HIPOT allows set Voltage and current limits and Voltage ramp rate.
In AUTO control mode there is a shortcut to further limit the test voltage within the boundaries of the selected pre-set, allowing testing upto desired voltage levels eg 10kV or 40kV
Ramp up can be set in range 0.5 ... 4.0 kV/s, step 0.5 kV/s.

Person name: Asian

Ripple is automated in HVTS thanks to its design.
HVTS automatically adjusts the position of internal voltage regulator if the voltage from the mains fluctuates by more than 1.5V (higher or lower from the moment test was started and output voltage was raised), so the output voltage will be as stable as possible. it will adjust Voltage regulator position 1 turn of the coil up or down that is equal to approx. 0.5kV of output. Accordingly, in the AC mode your ripple is less than 2% ; In case of DC Max value will less than 1%.

Person name: Asian

Withstand or hipot testing is used to evaluate the condition of as example cable insulation during installation, acceptance, or maintenance testing or as another example capability of a material substrate which is to be used in an electrical environment to function upto its rated voltage.

Person name: Asian

HVTS Hipot provides a Digital display incorporating both volt and current readings. Readings are displayed as values and can also be emulated per user option as an analog type display on the LCD.

Person name: Asian

The High Voltage unit is designed as a single-phase step-up transformer with oil insulation for the (HVT and HVTS) or SF6 insulation (HVTS-HP). In HVTS-HP systems HV unit is also equipped with a divider and a rectifier, enabling it to output both DC and AC test voltage.

Person name: Asian
